| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,107 pcs
|
5107 pcs | On Request | 1 | On Request | On Request | 1312 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepted IC Pin Size | |
| Contact Current Rating | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Dielectric Withstanding Voltage | |
| Features | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Termination | |
| Type | |
| Withdrawal Force |

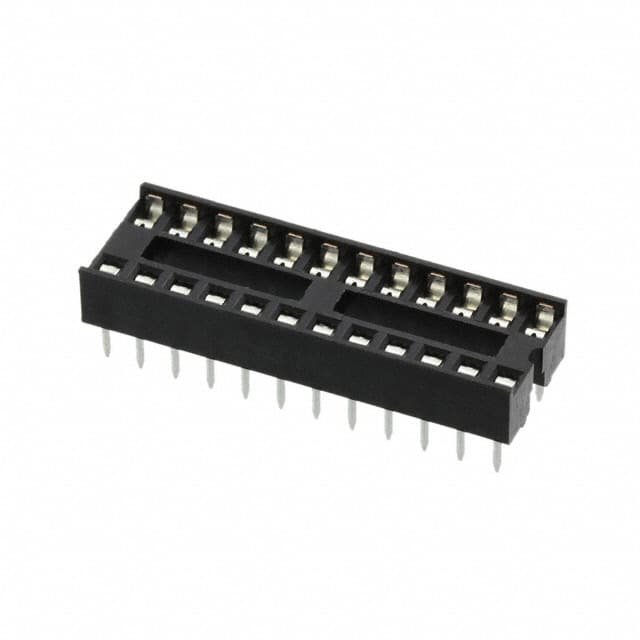

The TE Connectivity 1-2199298-8 is a 24-position DIP socket designed for through hole mounting. It features a 2.54mm (0.100") pitch with 0.3" (7.62mm) row spacing, making it suitable for standard DIP IC packages. The socket uses dual leaf contacts made of phosphor bronze with a tin finish (60.0µin thickness) for reliable electrical connections.
The open frame housing is constructed from glass-filled PBT thermoplastic, providing durability and heat resistance. The socket is rated for 1 A per contact with a maximum contact resistance of 20 mΩ and a dielectric withstanding voltage of 1000 V AC. It operates over a temperature range of -40°C to 105°C.
This socket is ideal for applications requiring easy IC insertion and removal, such as prototyping, testing, and production where field replacement or system upgrades are needed. The dual leaf contact design ensures low and constant contact resistance while the closed bottom prevents solder wicking.
This DIP socket has 24 positions arranged in a 2 x 12 grid.
The pitch is 2.54mm (0.100").
The contact current rating is 1 A.
This socket is designed for through hole mounting.
The operating temperature range is -40°C to 105°C.
The contacts are made of phosphor bronze with a tin finish.
