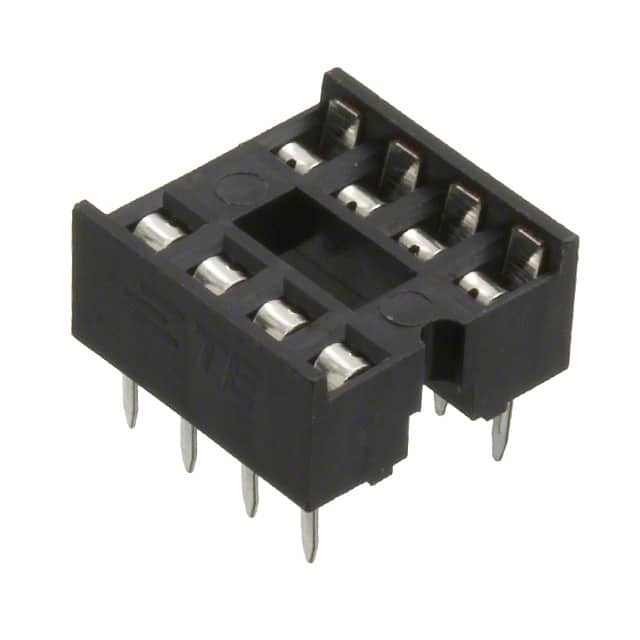

The TE Connectivity 1-2199298-2 is an 8-position DIP socket designed for reliable IC-to-board connections. It features a 0.3" (7.62mm) row spacing and a 2.54mm pitch, making it compatible with standard DIP packages. The socket uses dual leaf contacts with tin plating over phosphor bronze, ensuring low contact resistance (20 mΩ max) and high durability.
Mechanically, the socket offers through hole solder termination and an open frame housing that facilitates cleaning and inspection. It accepts IC pins from 0.008" to 0.012" and requires a maximum insertion force of 300 g with a minimum withdrawal force of 20 g. The operating temperature range spans -40°C to 105°C, suitable for industrial environments.
Electrical specifications include a contact rating of 1 A per pin and a dielectric withstanding voltage of 1000 V AC. The housing is made of glass-filled PBT thermoplastic, providing mechanical strength and thermal stability.
Typical applications include industrial controls, intelligent buildings, medical devices, military systems, and other embedded systems where reliable IC socketing is required.
8 positions arranged in a 2x4 grid.
2.54mm (0.100 inches).
1 A per pin.
Through hole.
-40°C to 105°C.
20 mΩ maximum.
