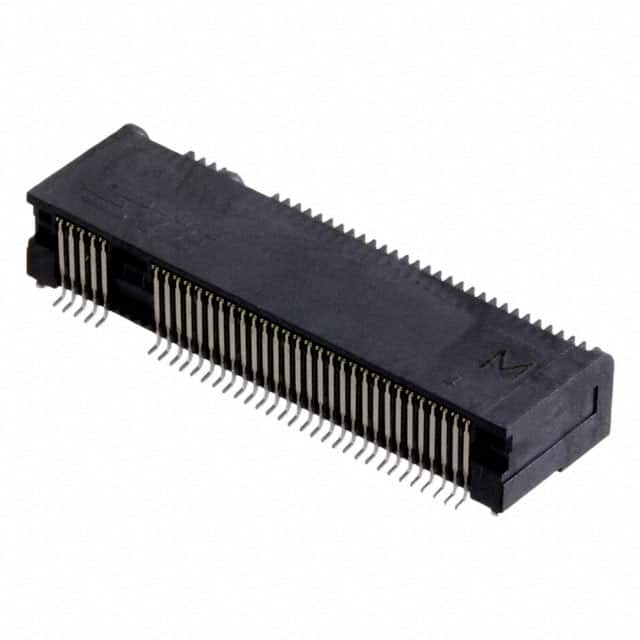

1-2199230-6 TE Connectivity 1-2199230-6 is a 67-position M.2 (NGFF) female card edge connector with 0.5mm pitch, gold contact finish, and surface mount right angle mounting.
Mfr Part #:

1-2199230-6

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-2199230-6 is a 67-position M.2 (NGFF) female card edge connector with 0.5mm pitch, gold contact finish, and surface mount right angle mounting.
✓ Total Stock: 80 pcs

1-2199230-6 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
Akira Global ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-2199230-6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Features
Gender
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Read Out
Termination
View Similar Products (0)

1-2199230-6 Description

Short technical summary and product information.

The TE Connectivity 1-2199230-6 is an M.2 (NGFF) Mini Card female edgeboard connector designed for high-density internal connections in compact computing and communications equipment. It features 67 positions in a dual read-out configuration with a 0.50mm pitch, enabling high-speed signal transfer in a small footprint.



The connector uses copper alloy contacts with a gold finish of 30.0µin (0.76µm) for reliable conductivity and corrosion resistance. It offers a surface mount, right angle termination for space-constrained PCB layouts. A board guide feature assists alignment during assembly.



Operating temperature range is -40°C to 80°C, ensuring suitability for a wide range of environments. The connector is currently RoHS3 and REACH compliant per unverified manufacturer declarations.

1-2199230-6 Quick Information

Product Type: Card Edge Connector
Series: M.2 NGFF
Canonical Name: 1-2199230-6 TE Connectivity M.2 (NGFF) Mini Card Edge Connector, Female, 67 Position, 0.5mm Pitch, Surface Mount Right Angle, Gold
Subcategory: M.2 (NGFF) Mini Card

1-2199230-6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

1-2199230-6 Features

  • 67-position M.2 female card edge connector.
  • 0.5mm pitch with dual readout configuration.
  • Gold-plated copper alloy contacts for reliability.
  • Surface mount right angle termination.
  • Board guide feature for easy alignment.

1-2199230-6 Applications

  • Used in M.2 solid-state drive modules.
  • Ideal for wireless communication card interfaces.
  • Suitable for compact embedded system designs.

1-2199230-6 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the connector have?

The connector has 67 positions.

What is the pitch of this M.2 connector?

The pitch is 0.50mm (0.020").

What is the mounting type for this part?

Surface mount, right angle.

What contact finish does this connector use?

Gold, with a thickness of 30.0µin (0.76µm).

What is the operating temperature range?

-40°C to 80°C.
