| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Voltage Rating |

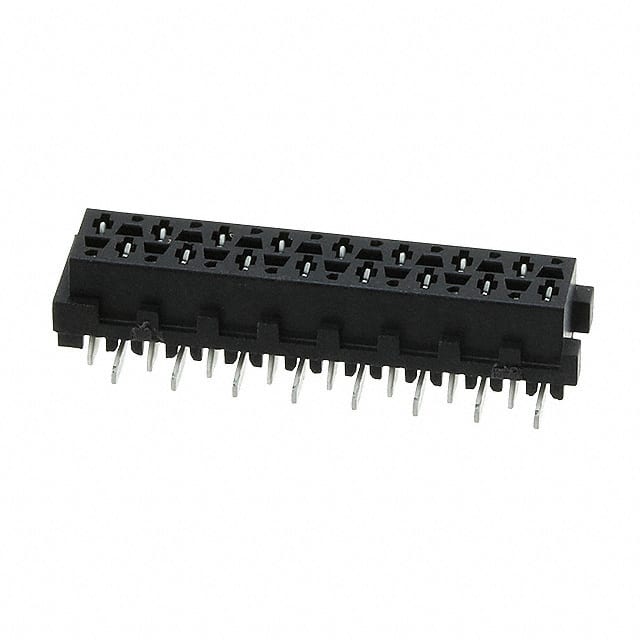

The TE Connectivity 1-2178711-6 is a 16 position receptacle connector from the Micro-MaTch Value-line series. It features a 2.54mm (0.100") pitch and 2 rows of forked contacts with tin finish. The connector uses a push-pull fastening type and is designed for board-to-board or cable applications.
This surface mount connector has a black insulation body with an insulation height of 5.30mm. It is rated for 100VDC and operates over a temperature range of -30°C to 85°C. All 16 positions are loaded.
The connector is supplied on tape and reel for automated assembly. It is suitable for use in home automation, lighting, CCTV, and other industrial and consumer applications.
The pitch is 2.54mm (0.100").
It has 16 positions, all loaded, in 2 rows.
The voltage rating is 100VDC.
The operating temperature range is -30°C to 85°C.
It uses surface mount (SMD) termination.
The contact finish is tin with a thickness of 3.00 µm.
It uses a push-pull fastening type.
