| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Termination Style | |
| Wire Type |

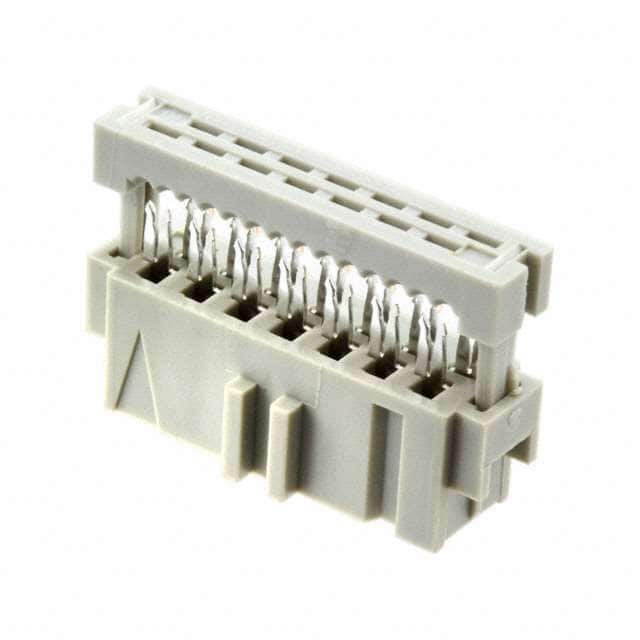

The TE Connectivity 1-215911-4 is a rectangular connector designed for ribbon cable termination using IDC (Insulation Displacement Contact) technology. It features 14 positions arranged in 2 rows with a 2.54mm pitch and 2.54mm row spacing, accommodating standard 0.100" pitch ribbon cable.
The receptacle uses gold plated female socket contacts with a thickness of 8.00µin (0.203µm), offering reliable electrical connections. The housing is gray and includes a feed through design with a polarizing key for correct orientation during mating.
This connector is mounted as free hanging (in-line) with a right angle cable exit, suitable for internal wiring harnesses in a variety of electronic equipment. The IDC termination eliminates the need for stripping and soldering, reducing assembly time.
It has 14 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
It uses free hanging (in-line), right angle mounting.
It is designed for ribbon cable with IDC termination.
Gold with a thickness of 8.00µin (0.203µm).
The housing is gray.
