| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,428 pcs
|
1428 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type |

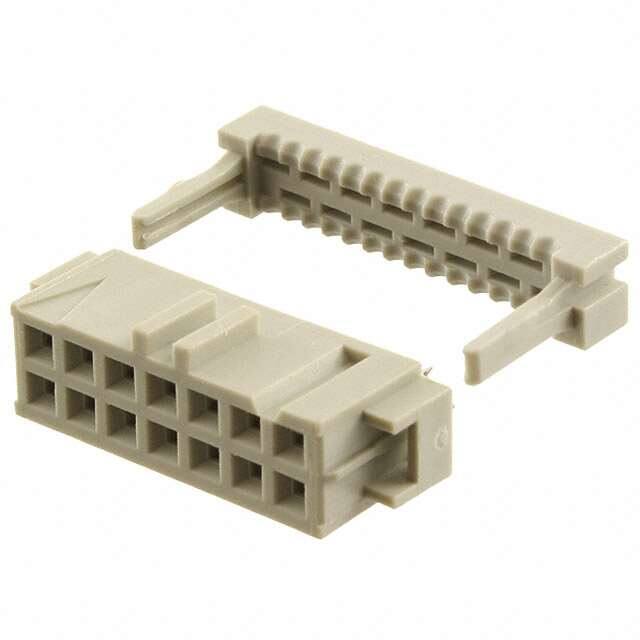

The TE Connectivity 1-215882-4 is a 14 position rectangular connector receptacle designed for IDC termination to ribbon cable. It features a 2.54mm (0.100") pitch with 2 rows spaced at 0.100" (2.54mm). The connector uses female socket contacts with a gold finish of 31.5µin (0.80µm) for reliable signal integrity.
This free hanging (in-line) connector accepts 28 AWG stranded or 26-30 AWG solid wire. It includes feed through and polarizing key features for correct alignment and secure mating. The gray housing is suitable for internal wiring applications.
Ideal for data and signal connections in electronic assemblies, this IDC receptacle provides a quick and reliable termination method without the need for individual wire stripping or crimping.
14 positions.
2.54mm (0.100").
Free hanging (in-line).
28 AWG stranded; 26-30 AWG solid.
Gold, 31.5µin (0.80µm).
