| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Board | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Features | |
| Halogen Free | |
| Housing Material | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Contacts | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Standard Package Quantity | |
| Tape and Reel | |
| Termination Style | |
| Wire Gauge |

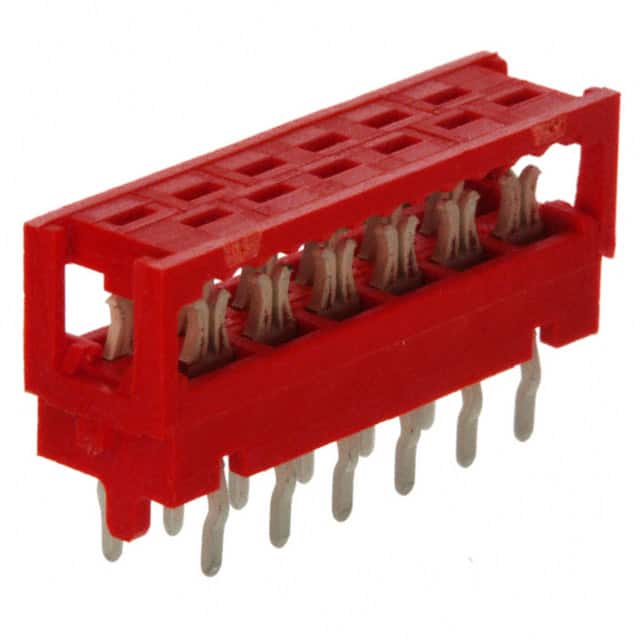

The TE Connectivity 1-215570-2 is a Micro-MaTch series paddle board connector designed for direct wire-to-board termination. This DIP header features 12 positions arranged in 2 rows with a standard 2.54 mm pitch, and accepts 28 AWG stranded or solid wire via insulation displacement contacts (IDC). The connector uses a feed-through design, allowing daisy-chaining in ribbon cable applications.
The housing is molded from red glass-filled polyester (G.F. Polyester), which provides mechanical strength and electrical insulation. Contacts are made of phosphor bronze with a tin over nickel plating for reliable conductivity and corrosion resistance. The row spacing matches 0.100 inches (2.54 mm), and the cable pitch is 0.050 inches (1.27 mm), consistent with standard IDC ribbon cable.
Mounting is achieved through a through hole, press-fit interface. The connector is available in both box packaging (250 pieces) and tape and reel (2500 pieces) for automated assembly. This component is suitable for board-in applications where a compact, reliable connection to flat ribbon cable is required.
12 positions arranged in 2 rows.
The pitch is 2.54 mm (0.100 inches) for the header, and the cable pitch is 1.27 mm (0.050 inches).
28 AWG stranded or solid wire.
Through hole with press-fit termination.
Phosphor bronze contact material with tin over nickel plating.
Glass-filled polyester (G.F. Polyester) in red.
