| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,500 pcs
|
7500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

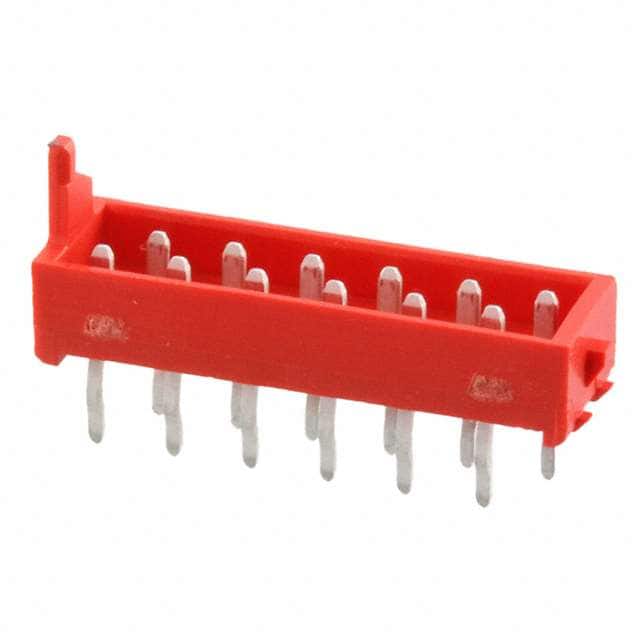

The TE Connectivity 1-215464-2 is a 12-position, 2-row male pin header from the Micro-MaTch series. It features a 2.54mm pitch and 2.54mm row spacing, with a shrouded 4-wall design that provides polarization and latch lock fastening. The header is through-hole mounted and supports both press-fit and solder termination. Contacts are made of phosphor bronze with a tin finish (3.00µm thickness), and the housing is red glass-filled PBT with UL94 V-0 flammability rating. Electrical ratings are 1.5A per contact and 230V, with an operating temperature range of -40°C to 105°C. The connector is suitable for board-to-board or cable applications. Packaging options include tape and reel (2500 pieces per reel) or box packaging (250 pieces per box).
12 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch and row spacing.
1.5A per contact.
230V.
Through hole, with press-fit and solder termination options.
Yes, shrouded with 4 walls for polarization and latch lock fastening.
-40°C to 105°C.
