| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Housing Material | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Standard Package Quantity (Box) | |
| Standard Package Quantity (Reel) | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

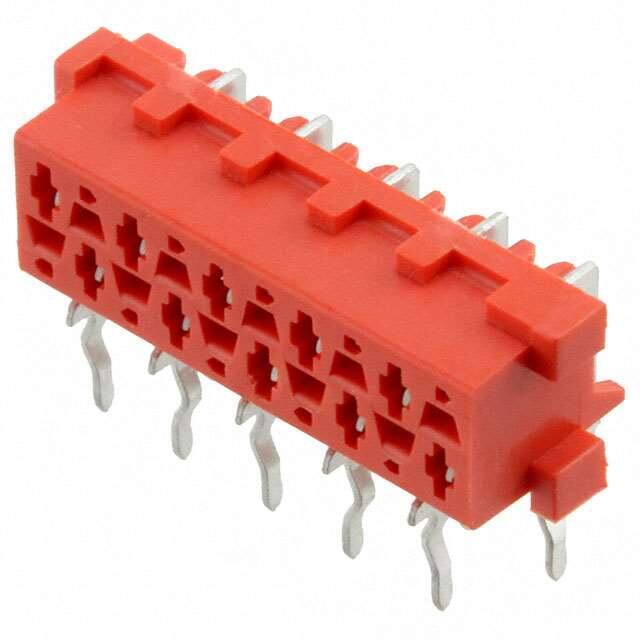

The TE Connectivity 1-215460-0 is a 10-position, 2-row receptacle from the Micro-MaTch series. It features a 1.27mm staggered contact pitch with 2.54mm row spacing, designed for through-hole right-angle mounting. Contacts are made of phosphor bronze with tin plating over nickel underplating, and the housing is glass-filled PBT (red) with a UL94 V-0 flammability rating.
This connector supports board-to-board or cable-to-board applications with a push-pull fastening type. The operating temperature range is -40°C to 105°C, and the voltage rating is 100VDC. Termination is via kinked pin solder, providing secure retention.
Packaging options include box packaging (250 connectors per box) and tape and reel (2500 connectors per reel). The part is RoHS3 and REACH compliant (unverified) with MSL 1 (unlimited).
10 positions in 2 rows.
1.27mm staggered pitch.
100VDC.
Through hole, right angle.
-40°C to 105°C.
Tin over nickel underplating.
Push-pull.
