1-215309-0 20 position receptacle, female socket, through hole, 2.54mm pitch, tin contacts.
Mfr Part #:

1-215309-0

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
20 position receptacle, female socket, through hole, 2.54mm pitch, tin contacts.
✓ Total Stock: 3 pcs

1-215309-0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-215309-0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Type
Fastening Type
Insulation Color
Insulation Height
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
Style
Termination
Termination Style
View Similar Products (0)

1-215309-0 Description

Short technical summary and product information.

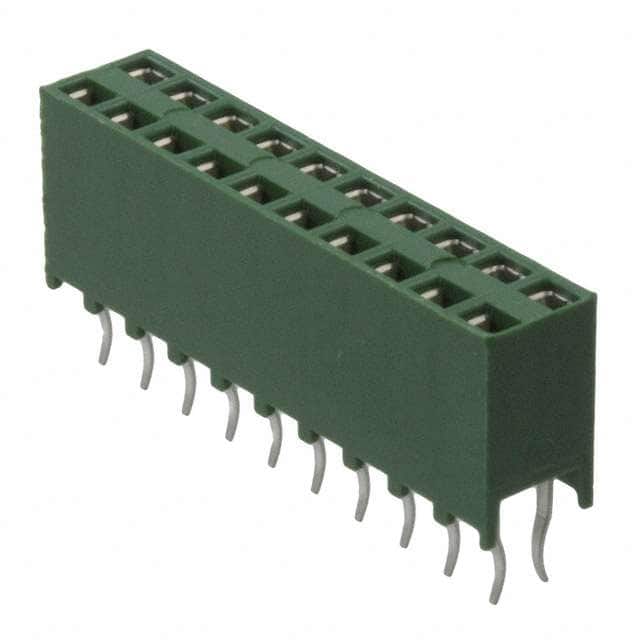

This is a 20-position receptacle with female socket contacts, designed for board-to-board applications. It features a 2.54mm pitch and 2 rows with 0.100" (2.54mm) row spacing.



The connector uses through-hole mounting with kinked pin solder termination. The contacts are finished with tin, with a thickness of 31.5µin (0.80µm). The insulator is available in black or green and has a UL94 V-0 flammability rating.



The connector has a push-pull fastening type and an insulation height of 8.51mm. It is RoHS3 compliant and REACH unaffected (unverified).

1-215309-0 Quick Information

Product Type: Receptacle, Female Socket
Series: HV100
Canonical Name: TE Connectivity 1-215309-0 20 Position Receptacle, Female Socket, Through Hole, 2.54mm Pitch
Subcategory: Board-to-Board Receptacle

1-215309-0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 Unlimited
REACH Status: Non-Compliant

1-215309-0 Features

  • 20 position, 2 row receptacle.
  • 2.54mm pitch with 0.100" row spacing.
  • Through-hole mounting with kinked pin solder.
  • Tin contact finish, 31.5µin thickness.
  • UL94 V-0 rated insulator.

1-215309-0 Applications

  • Used for board-to-board interconnections.
  • Suitable for signal and power distribution.
  • Ideal for automated assembly with kinked pin retention.

1-215309-0 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1-215309-0 have?

20 positions.

What is the pitch of the 1-215309-0?

2.54mm

What is the mounting type of the 1-215309-0?

Through hole

How many rows does the 1-215309-0 have?

2 rows

What is the contact finish on the 1-215309-0?

Tin

What termination style does the 1-215309-0 use?

Kinked pin, solder

What is the flammability rating of the insulator?

UL94 V-0
