| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style |

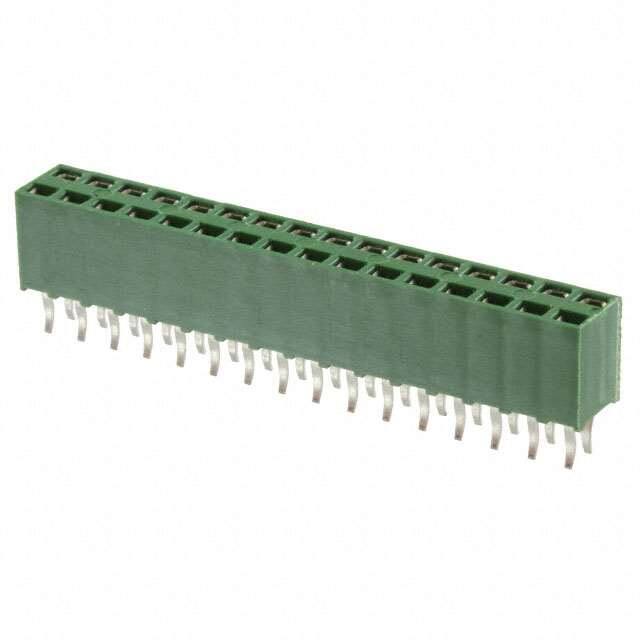

This is a TE Connectivity 1-215307-6 receptacle designed for board-to-board applications. It has 32 positions arranged in 2 rows with a 2.54mm pitch and row spacing. The connector is through-hole mounted with kinked pin solder termination. The contact finish is tin with a thickness of 0.80µm (31.5µin). The insulation height is 7.00mm and the contact length is 3.10mm. The housing is available in black or green and is rated UL94 V-0 for flammability. All positions are loaded. The fastening type is push-pull, making it suitable for applications where a secure yet easily separable connection is required.
32 positions.
2.54mm (0.100 inches).
Through hole with kinked pin solder termination.
Tin with a thickness of 0.80µm (31.5µin).
Push-pull.
UL94 V-0.
Board to board.
