| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,632 pcs
|
1632 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style |

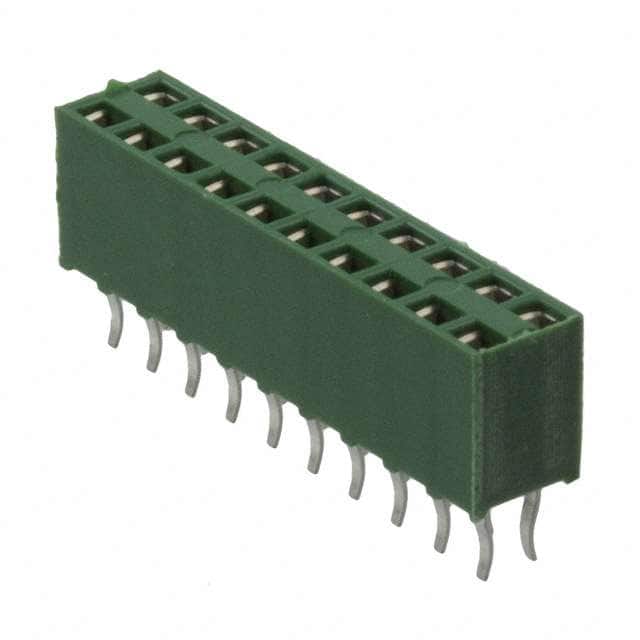

This is a 20-position receptacle connector from TE Connectivity, designed for board-to-board applications. It features a female socket contact type with push-pull fastening and a 2.54mm pitch. The connector is through-hole mounted with kinked pin solder termination.
With two rows of 10 contacts each, all positions loaded, the connector offers a compact solution for dense PCB layouts. The insulator has a height of 7.00mm and is available in black or green. The contact finish is tin with a thickness of 31.5µin, and the contact length is 3.10mm. The housing material has a UL94 V-0 flammability rating.
The connector is listed as RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). These compliance statuses are unverified and should be confirmed with the manufacturer. The part is suitable for applications requiring reliable interconnection in controlled environments.
20 positions.
2.54mm (0.100 inch).
Through hole, with kinked pin solder termination.
Female socket contacts.
Push-pull fastening.
2 rows.
Tin, with a thickness of 31.5µin.
