| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,680 pcs
|
1680 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Style | |
| Termination |

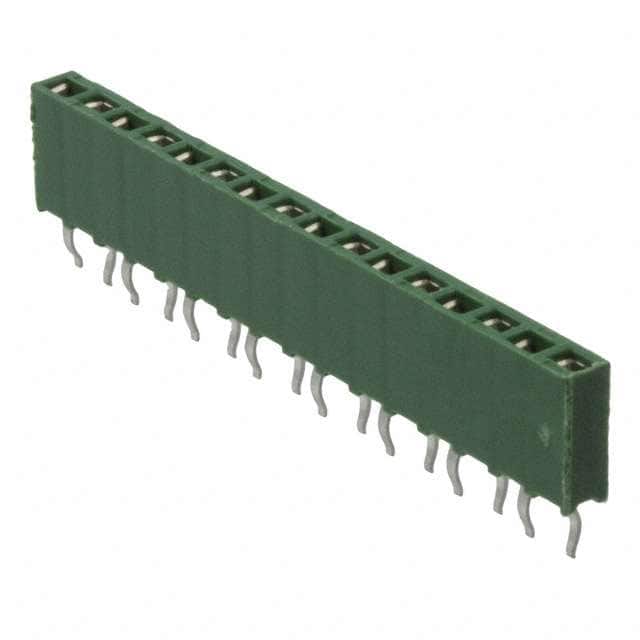

The TE Connectivity 1-215297-6 is a 16-position receptacle designed for board-to-board interconnections. It features a single row of female socket contacts with a 2.54mm pitch, making it suitable for compact PCB layouts. The connector uses a push-pull fastening mechanism and has an insulation height of 7.00mm.
Mounting is through hole with kinked pin solder termination, providing secure mechanical attachment. The contact finish is tin with a thickness of 31.5µin, and the contact length is 3.10mm. The insulation material is rated UL94 V-0 for flammability.
This connector is part of TE Connectivity's rectangular connector family and is commonly used in industrial, consumer, and prototyping applications where reliable board-to-board connections are required.
16 positions.
2.54mm (0.100").
Through hole.
Tin with thickness 31.5µin (0.80µm).
Push-pull.
7.00mm (0.276").
RoHS3 compliant (unverified).
