| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,500 pcs
|
27500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,555 pcs
|
2555 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Type | |
| Cover Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Overall Length | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type | |
| connector_height |

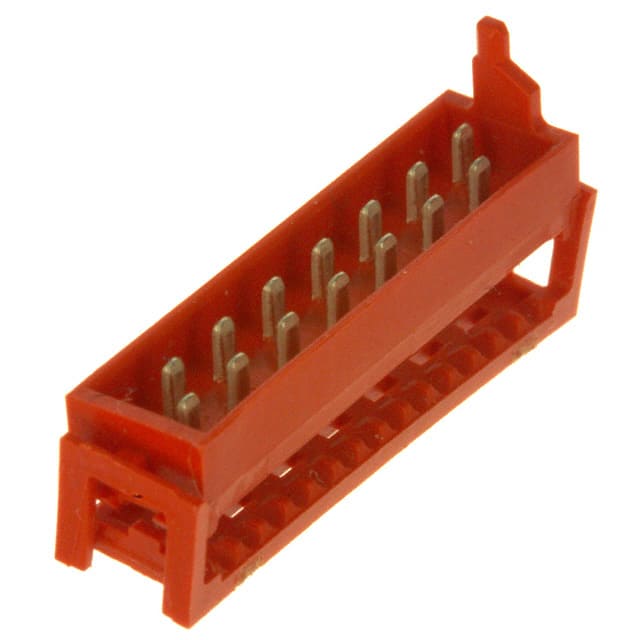

The TE Connectivity 1-215083-4 is a 14-position male pin IDC connector plug from the Micro-MaTch series. It features a 2.54mm pitch with 2 rows spaced 1.50mm apart, designed for free-hanging (in-line) termination of 28 AWG ribbon cable using insulation displacement contacts (IDC). The connector uses tin-plated phosphor bronze contacts for reliable electrical performance and is housed in a red glass-filled polyester housing and cover, providing durability and clear visual identification. The overall length is 21.3 mm and connector height after termination averages 5.1 mm. This connector includes a feed-through feature for pass-through wiring and is suitable for applications requiring a compact, reliable interface for ribbon cable connections.
It has 14 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") between centers.
It is designed for free hanging (in-line) mounting.
It uses IDC (insulation displacement connection) for 28 AWG ribbon cable.
The contacts are phosphor bronze with tin over nickel plating.
The overall length is 21.3 mm.
Available in boxes of 250 connectors and reels of 2500 connectors.
