| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Standard Package Quantity | |
| Style | |
| Termination | |
| Voltage Rating |

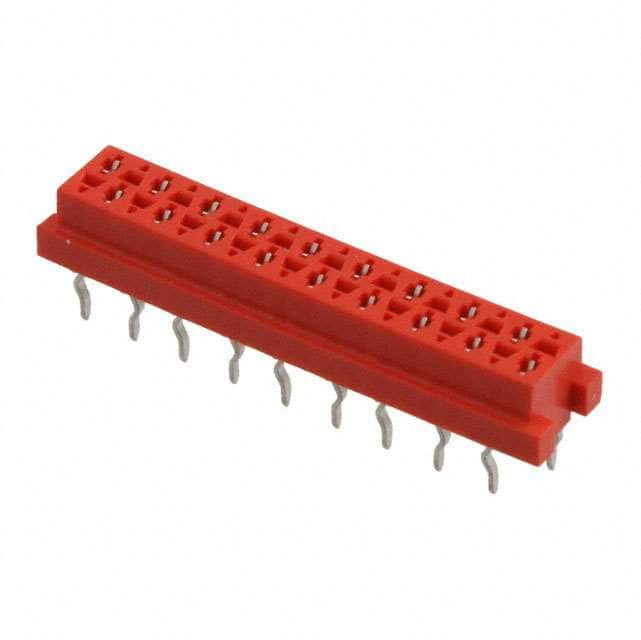

The 1-215079-8 is a receptacle connector from TE Connectivity, part of the Micro-MaTch series. It features 18 positions arranged in 2 rows with a 2.54mm pitch, making it suitable for compact board-to-board or cable connections.
The connector uses forked contacts with a tin finish for reliable electrical connections. It is designed for through hole mounting with kinked pin solder termination. The red insulation housing is rated UL94 V-0 for flammability resistance.
The connector is rated for 100VDC and operates over a temperature range of -40°C to 105°C. It has a push-pull fastening type for easy mating and unmating.
The 1-215079-8 is supplied in tape and reel packaging with 2500 connectors per reel, suitable for automated assembly processes.
18 positions.
2.54mm.
100VDC.
Through hole.
-40°C to 105°C.
Tin.
Red.
