| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,692 pcs
|
1692 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,692 pcs
|
1692 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Standard Package Quantity | |
| Style | |
| Termination | |
| Voltage Rating |

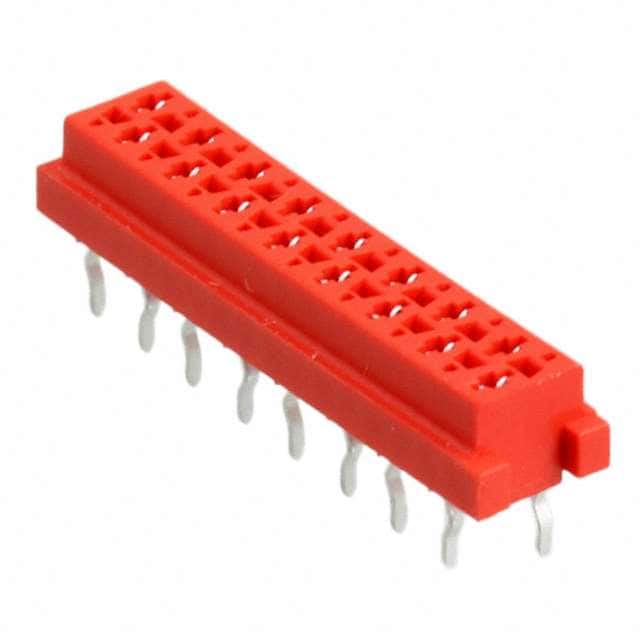

The TE Connectivity 1-215079-6 is a 16-position, 2-row female receptacle from the Micro-MaTch series. It features a 2.54mm pitch and 2.54mm row spacing, with a through-hole termination using kinked pins for secure solder connection. The contact length is 3.10mm and insulation height is 4.00mm. The housing is red PBT polyester with UL94 V-0 flammability rating. Contacts are phosphor bronze with tin finish. Operating temperature range is -40°C to 105°C. The connector is designed for board-to-board or cable applications. It is available in tape and reel packaging (2500 per reel) or box packaging (250 per box). Voltage rating is 100VDC. No current rating is specified in the available data.
16 positions.
2.54mm (0.100").
100VDC.
Through hole.
-40°C to 105°C.
Phosphor bronze.
RoHS3 compliant per existing data, but this is unverified.
