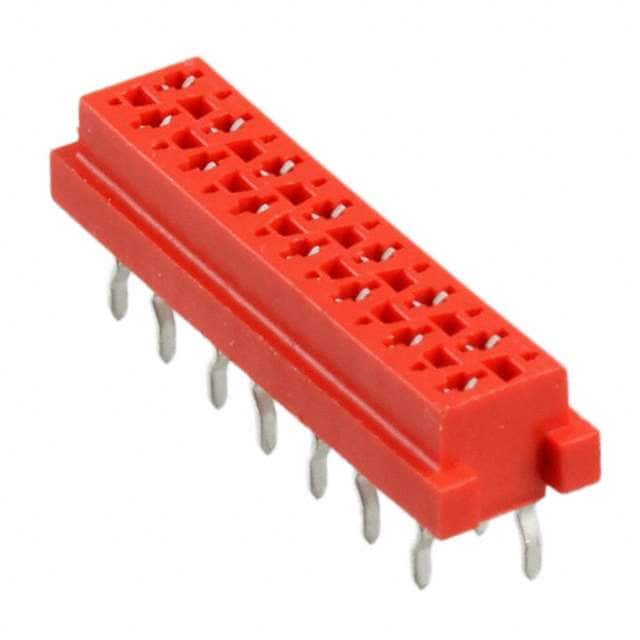

1-215079-4 TE Connectivity 1-215079-4 is a 14-position female receptacle with 2.54mm pitch, through-hole mounting, and tin-plated forked contacts. It is part of the Micro-MaTch series and supports board-to-board or cable applications.
Mfr Part #:

1-215079-4

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-215079-4 is a 14-position female receptacle with 2.54mm pitch, through-hole mounting, and tin-plated forked contacts. It is part of the Micro-MaTch series and supports board-to-board or cable applications.
✓ Total Stock: 5,087 pcs

1-215079-4 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
87 pcs
On Request
87 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-215079-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Type
Fastening Type
Housing Material
Insulation Color
Insulation Height
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

1-215079-4 Description

Short technical summary and product information.

The TE Connectivity 1-215079-4 is a 14-position female receptacle connector from the Micro-MaTch series. It features a 2.54mm pitch and 2 rows with a row spacing of 2.54mm. The connector uses forked tin-plated phosphor bronze contacts and a red G.F. polyester PBT housing with a UL94 V-0 flammability rating.



This through-hole receptacle has a push-pull fastening type and kinked pin solder termination. It is rated for 100VDC and operates over a temperature range of -40°C to 105°C. The insulation height is 4.00mm and the overall length is 19.8mm.



The connector is suitable for board-to-board or cable applications. Packaging options include 250 per box or 2500 per reel.

1-215079-4 Quick Information

Product Type: Rectangular Connector - Receptacle
Series: 215079
Canonical Name: TE Connectivity Micro-MaTch 14 Position Female Receptacle, Through Hole, Tin Plating
Subcategory: Board-to-Board / Cable Connector

1-215079-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-215079-4 Features

  • 14-position receptacle with 2.54mm pitch.
  • Through-hole mounting with kinked pin solder.
  • Tin-plated phosphor bronze forked contacts.
  • UL94 V-0 rated G.F. polyester PBT housing.
  • Operating temperature range -40°C to 105°C.

1-215079-4 Applications

  • Board-to-board interconnections in electronic assemblies.
  • Cable-to-board connections in industrial equipment.
  • General purpose signal and low-power connections.

1-215079-4 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the TE Connectivity 1-215079-4?

The pitch is 2.54mm (0.100 inches).

What is the voltage rating of this connector?

The voltage rating is 100VDC.

What mounting type does the 1-215079-4 use?

It uses through-hole mounting with kinked pin solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

What is the contact finish on this connector?

The contact finish is tin over nickel.

What is the housing material and flammability rating?

The housing is made of G.F. Polyester PBT with a UL94 V-0 flammability rating.
