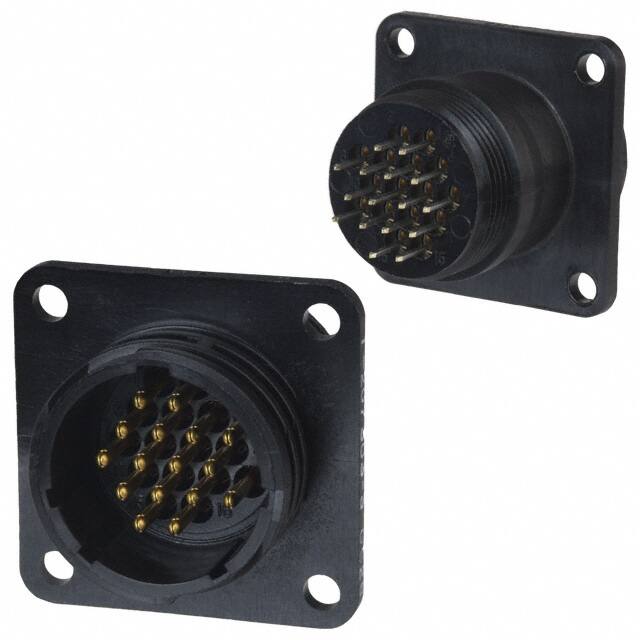

1-207303-3 This TE Connectivity connector assembly, part number 1-207303-3, is a 16-position receptacle with male pins. It features gold plating in the mating area and a solder termination method.
Mfr Part #:

1-207303-3

Mfr Name: TE Connectivity
TE Connectivity
This TE Connectivity connector assembly, part number 1-207303-3, is a 16-position receptacle with male pins. It features gold plating in the mating area and a solder termination method.
Stock on Request

1-207303-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applies To
Brand
Connector Style
Connector Type
Contact Base Material
Contact Finish
Contact Plating, Mating Area, Material
Contact Termination Type
Contact Type
Fastening Type
Fluid Resistance
Housing Color
Housing Material
Keying
Material Flammability Rating
Mating Alignment Type
Mating Retention Type
Mount
Mount Angle
Mount Style
Mounting Feature
Mounting Type
Number of Positions
Number of Power Positions
Number of Signal Positions
Operating Temperature
Orientation
PCB Mount Retention
Primary Material
Product Series
Reverse Gender
Reverse Numbering
Sealed
Shell Material
Shell Size
Shell Type
Termination
Termination End Plating
Termination Method
Termination Post Length
Termination Style
Thread Size
UL Flammability Rating
Voltage Rating
View Similar Products (0)

1-207303-3 Description

Short technical summary and product information.

The TE Connectivity 1-207303-3 is a circular connector assembly designed for panel mounting. It features a receptacle style with 16 positions, all designated for signal connections, and no power positions.



The connector has a straight mount angle and a shell size of 17. The mating retention type is threaded coupling, and it utilizes a flange with mounting holes for secure attachment. The contact termination type is through hole, with a solder termination method and tin over nickel plating on the termination end. The contact plating in the mating area is gold.



Constructed with an all-plastic shell, this connector series is designated as Series 1. It has a thread size of 15/16-20 UNEF-2A and is not sealed. The housing material is thermoplastic with a black color and a UL 94V-0 flammability rating. The operating temperature range is from -55°C to 105°C.



This connector assembly is RoHS and ELV compliant. It is suitable for wave soldering processes up to 265°C.

1-207303-3 Quick Information

Product Type: Connector Assembly
Series: Series 1
Canonical Name: TE Connectivity 1-207303-3 Connector Assembly, Receptacle, Male Pins, 16 Positions
Subcategory: Receptacle

1-207303-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-207303-3 Features

  • 16 position receptacle connector assembly.
  • Male pins with gold mating area plating.
  • Through hole solder termination method.
  • Panel mount with threaded coupling.
  • Operates from -55 to 105 degrees Celsius.

1-207303-3 Applications

  • Suitable for signal connections.
  • Panel mount applications.
  • Threaded coupling for secure mating.
  • Designed for solder termination.

1-207303-3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating for this connector assembly?

250 VAC/DC

How many positions does this connector have?

16

What is the mounting type for this connector?

Panel Mount, Through Hole

What is the termination method for the contacts?

Solder

What is the operating temperature range?

-55°C to 105°C

What is the shell size of this connector?

17

What is the material flammability rating?

UL94 V-0
