| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Exit | |
| Cable Opening | |
| Color | |
| Diameter | |
| Diameter (Max) | |
| Features | |
| Flammability Rating | |
| Includes | |
| Length (Max) | |
| Material | |
| Material Detail | |
| Screw Length | |
| Shell Size | |
| Thread Size | |
| Type |

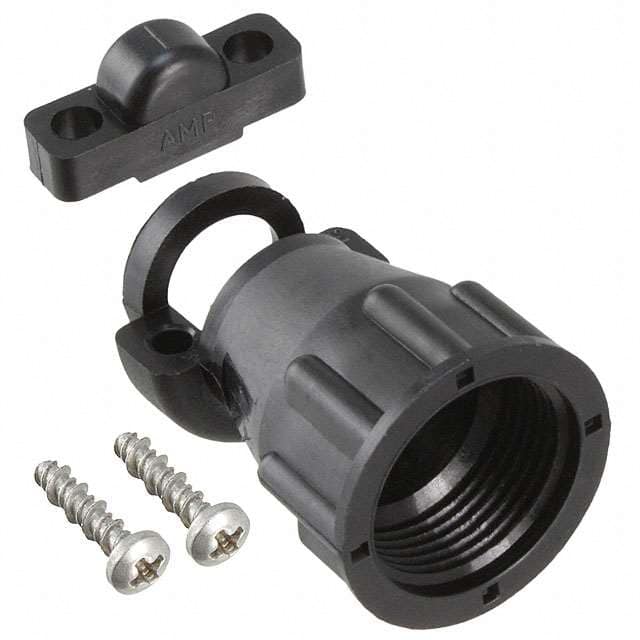

TE Connectivity's 1-206062-3 is a backshell and cable clamp designed for use with Circular Plastic Connectors (CPC) of shell size 11. The assembly includes a cable clamp, two screws, and clamping inserts, all packaged unassembled. The housing is made of black thermoplastic that is heat-stabilized, fire-resistant, and self-extinguishing, meeting UL 94V-0 flammability rating.
Mechanically, it features a 180° cable exit with a cable opening diameter of 8.36mm (0.329"). The maximum outer diameter is 20.96mm (0.825") and the overall length is 31.75mm (1.250"). The thread size is 5/8-24 UNEF, and the clamp screws are 0.500" (12.7mm) long. The clamping area can be adjusted by inverting or changing the clamping inserts.
Compliance: RoHS3 compliant. Note that MSL and REACH status are unverified. The part is suitable for use with CPC series connectors requiring reliable cable retention and strain relief.
Size 11.
5/8-24 UNEF.
8.36mm (0.329").
Black thermoplastic, heat-stabilized, fire-resistant, self-extinguishing, UL 94V-0.
Yes, RoHS3 compliant.
Cable clamp, two screws, and clamping inserts (packaged unassembled).
20.96mm (0.825").
