| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
260 pcs
|
260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Specifications | |
| Thread Size |

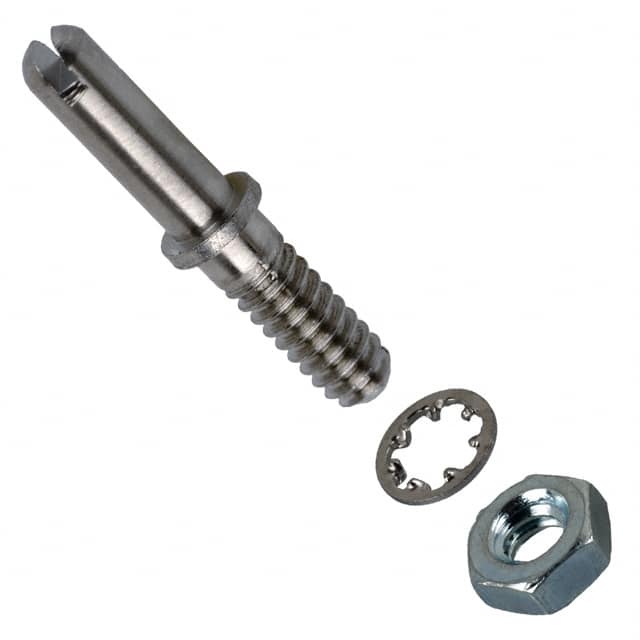

The TE Connectivity 1-201046-2 is a guide pin accessory designed for use with M Series backplane connectors. It features a 6-32 thread size and is intended for mechanical alignment and guidance during connector mating. This guide pin is a corner-mounted component that helps ensure proper positioning and reduces insertion force.
As a mechanical accessory, the 1-201046-2 is compatible with TE's M Series connector systems commonly used in backplane applications. The 6-32 thread allows for secure attachment to the connector or panel. No electrical characteristics are specified as this is a purely mechanical component.
The product is listed as RoHS3 compliant, MSL 1 (unlimited), and REACH unaffected, though these compliance claims are unverified. The guide pin is supplied in standard packaging, but the exact package quantity is not confirmed.
It is a Guide Pin.
It is for use with M Series connectors.
The thread size is 6-32.
It is listed as RoHS3 compliant, but this is unverified.
MSL is 1 (Unlimited), but this is unverified.
It is listed as REACH Unaffected, but this is unverified.
