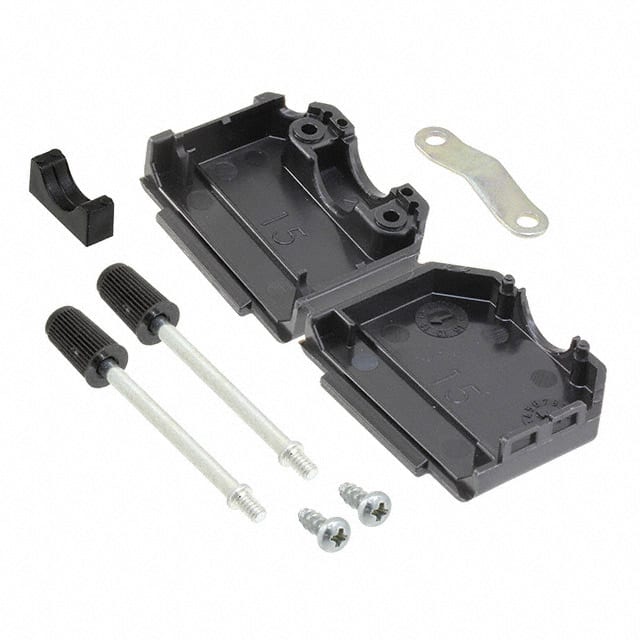

1-1991253-5 Hinged backshell for D-Sub connectors with 15 positions, 180° cable exit, unshielded, black polyamide material, includes mating screws and cable clamp. Operating temperature -55°C to +105°C.
Mfr Part #:

1-1991253-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Hinged backshell for D-Sub connectors with 15 positions, 180° cable exit, unshielded, black polyamide material, includes mating screws and cable clamp. Operating temperature -55°C to +105°C.
✓ Total Stock: 3 pcs

1-1991253-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1991253-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Diameter
Cable Exit
Cable Type
Color
Features
Hardware
Industrial Grade
Material
Number of Positions
Operating Temperature Range
SVHC Present
Shielding
View Similar Products (0)

1-1991253-5 Description

Short technical summary and product information.

This TE Connectivity hinged backshell is designed for D-Sub connectors, offering a low-cost cable management solution. It features 15 positions with a 180° straight cable exit, accommodating round cables from 3.0 to 11.0 mm in diameter. The unshielded body is molded from black polyamide (PA) nylon with a UL94 V-2 flammability rating, ensuring durability in a wide range of environments.



Integrated hardware includes self-tapping 4-40 UNC mating screws and a cable clamp for secure assembly. The hinged design allows easy access during installation and maintenance. The backshell operates reliably across a temperature range of -55°C to +105°C.



Supplied in bulk packaging, this backshell is suitable for industrial, communication, and general-purpose D-Sub connector applications. Its straightforward design simplifies cable termination while providing mechanical protection and strain relief.

1-1991253-5 Quick Information

Product Type: Hinged Backshell
Series: 1991253
Canonical Name: TE Connectivity Hinged Backshell, 15 Position, 180° Cable Exit, Unshielded, Polyamide, Black
Subcategory: Hinged Backshell

1-1991253-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-1991253-5 Features

  • Hinged backshell design for easy cable access.
  • 15 positions with 180° cable exit.
  • Unshielded polyamide body with UL94 V-2 rating.
  • Includes mating screws and cable clamp.
  • Operating temperature -55°C to +105°C.

1-1991253-5 Applications

  • Used in D-Sub connector cable assemblies.
  • Suitable for industrial control and communication equipment.
  • Ideal for applications requiring a low-cost, reliable backshell.

1-1991253-5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

15 positions.

What is the cable exit angle?

180° straight exit.

Is the backshell shielded?

No, it is unshielded.

What material is the backshell made of?

Black polyamide (PA) nylon.

What is the operating temperature range?

-55°C to +105°C.

What cable diameter does it accommodate?

3.0 to 11.0 mm round cable.

What is the flammability rating?

UL94 V-2.
