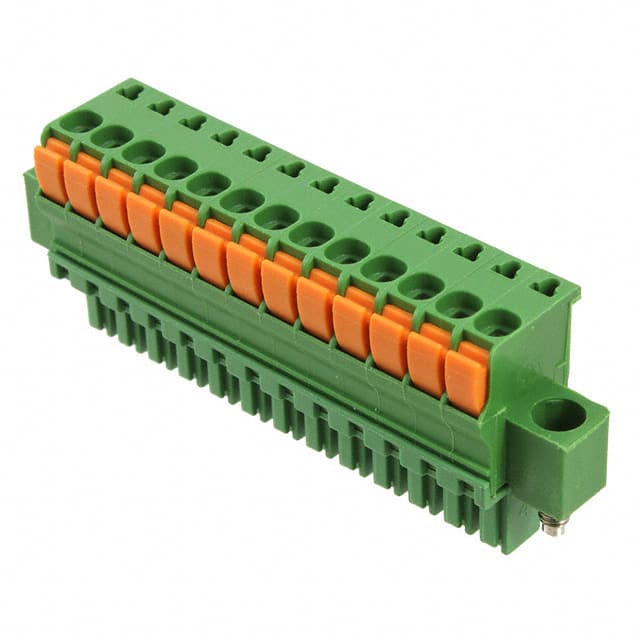

1-1986723-3 1-1986723-3 is a 13 position terminal block plug with female sockets, 3.5mm pitch, free hanging mounting, and screwless push-in spring termination.
Mfr Part #:

1-1986723-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
1-1986723-3 is a 13 position terminal block plug with female sockets, 3.5mm pitch, free hanging mounting, and screwless push-in spring termination.
✓ Total Stock: 50 pcs

1-1986723-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1986723-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1-1986723-3 Description

Short technical summary and product information.

The TE Connectivity 1-1986723-3 is a 13 position terminal block plug designed for wire-to-board interconnections in industrial and commercial applications. It features female socket contacts arranged in a single level with a 3.5mm pitch. The plug uses a screwless leg spring, push-in termination style for quick and reliable wire connection without tools. It is rated for 9A current and 300V voltage, with an operating temperature range from -40°C to 110°C. The housing is green and includes a mating flange for secure locking with the mating header. The wire gauge range is 0.05-2mm², and the plug entry is 180° (straight). The contact mating finish is tin. This plug is intended for free hanging (in-line) installation.

1-1986723-3 Quick Information

Product Type: Terminal Block Plug
Canonical Name: TERM BLOCK PLUG 13POS STR 3.5MM
Subcategory: Headers, Plugs and Sockets

1-1986723-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant
Lead Free: Yes

1-1986723-3 Features

  • 13 position single level plug.
  • 3.5mm pitch for compact wiring.
  • Screwless push-in spring termination.
  • Rated 9A and 300V operation.
  • Free hanging (in-line) mounting style.

1-1986723-3 Applications

  • Industrial control panel wiring.
  • Power distribution terminal blocks.
  • Sensor and actuator connections.
  • Building automation equipment.

1-1986723-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

13 positions in a single level.

What is the pitch of this connector?

3.50mm (0.138 inches).

What is the current and voltage rating?

9A current and 300V voltage.

What mounting type does this plug use?

Free hanging (in-line) mounting.

What is the termination style?

Screwless - leg spring, push-in spring.

What wire gauge is compatible?

Wire cross-section from 0.05mm² to 2mm².

What is the operating temperature range?

-40°C to 110°C.
