| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,200 pcs
|
7200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Voltage Rating |

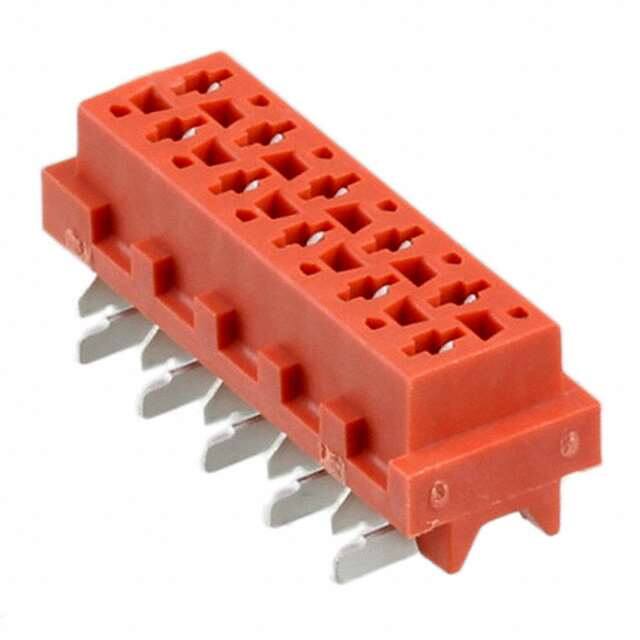

The TE Connectivity 1-188275-0 is a 10-position rectangular connector receptacle designed for board-to-board or cable applications. It features a 2.54mm pitch and 0.100" row spacing, with two rows of forked contacts terminated via surface mount solder attachment. The housing is rated UL94 V-0 for flammability and comes in a red insulation color with a height of 5.30mm. The push-pull fastening type ensures easy mating and unmating.
This connector is rated for 100VDC operation and operates across a temperature range of -40°C to 105°C. The contact finish is tin, providing reliable conductivity and corrosion resistance. All 10 positions are loaded, making it suitable for dense signal connections on a PCB.
The surface mount design supports automated assembly processes. The insulation height of 5.30mm provides adequate clearance under the connector body. This part is RoHS3 compliant and has an MSL of 1 (unlimited), simplifying handling and storage requirements.
This connector has 10 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100"). Row spacing is also 0.100" (2.54mm).
The voltage rating is 100VDC.
It uses surface mount (SMD) termination with solder.
The operating temperature range is -40°C to 105°C.
The insulation height is 5.30mm (0.209").
The material flammability rating is UL94 V-0.
