| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,750 pcs
|
3750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

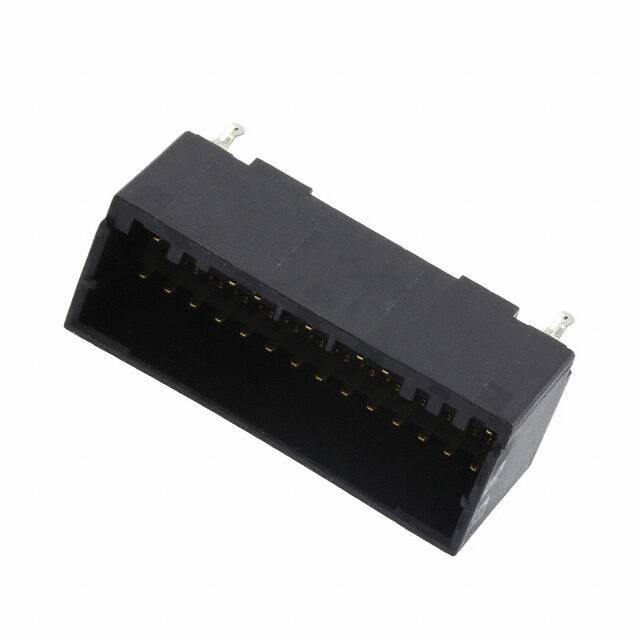

The TE Connectivity 1-1827872-4 is a 28-position, 2-row shrouded header designed for board-to-board or cable applications. It features a 2.00mm pitch and 3.30mm row spacing, with square male pins made of copper alloy and a tin contact finish (15.0µin). The header is through-hole mounted with solder termination and includes a detent lock fastening system and board lock feature for secure mating.
Rated for 3A current and 125V voltage, the connector operates over a temperature range of -55°C to 105°C. The black thermoplastic, polyester, glass-filled insulation is rated UL94 V-0 for flammability. The shrouded 4-wall design provides pin protection and alignment during mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.34 | $8.34 |
| 10+ | $7.51 | $7.51 |
| 30+ | $7.07 | $7.07 |
| 60+ | $6.89 | $6.89 |
| 105+ | $6.71 | $6.71 |
| 255+ | $5.98 | $5.98 |
| 510+ | $5.62 | $5.62 |
| 1,005+ | $5.14 | $5.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 28 positions arranged in 2 rows.
The pitch is 2.00mm (0.079 inches).
It is rated for 3A current and 125V voltage.
It uses through-hole mounting with solder termination.
The operating temperature range is -55°C to 105°C.
Yes, it has a shrouded 4-wall design for pin protection.
Contacts are copper alloy with a tin finish of 15.0µin (0.38µm).
