| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
571 pcs
|
571 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

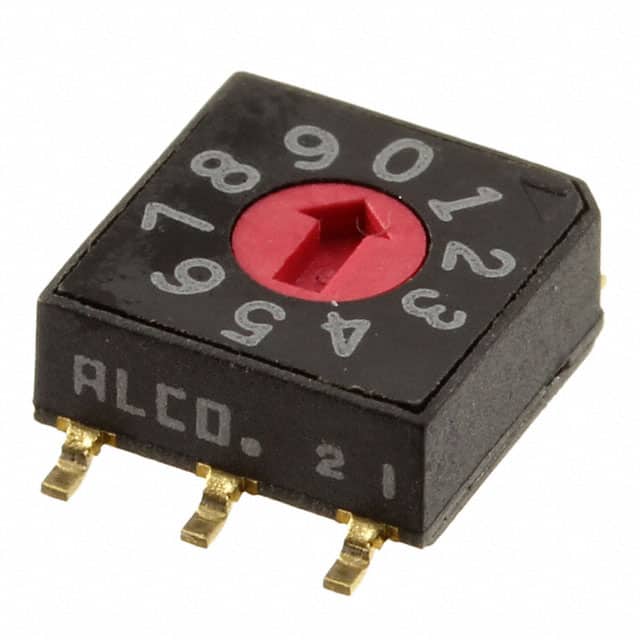

The TE Connectivity 1-1825013-0 is a rotary DIP switch with a BCD (Binary Coded Decimal) output, offering 10 distinct positions for versatile control.
This switch is designed for surface mounting with gull wing termination, ensuring a secure and reliable connection on PCBs. It features a process-sealed construction for enhanced durability and protection.
Electrically, the 1-1825013-0 is rated for 20VAC/DC and handles a current of 0.4VA. The contact material is Beryllium Copper with a Gold finish, providing excellent conductivity and corrosion resistance. It operates within a temperature range of -30°C to 85°C.
Key mechanical specifications include a pitch of 2.54mm (0.100") and a height above the board of 0.122" (3.10mm). The actuator type is rotary for tool operation, with flush or recessed options available.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TE Connectivity 1-1825013-0 rotary DIP switch uses a BCD circuit.
The 1-1825013-0 switch has 10 positions.
The 1-1825013-0 has a current rating of 0.4VA and a voltage rating of 20VAC/DC.
The operating temperature range for this TE Connectivity switch is -30°C to 85°C.
The 1-1825013-0 uses a surface mount type.
The 1-1825013-0 features a gull wing termination style.
