| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
490 pcs
|
490 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

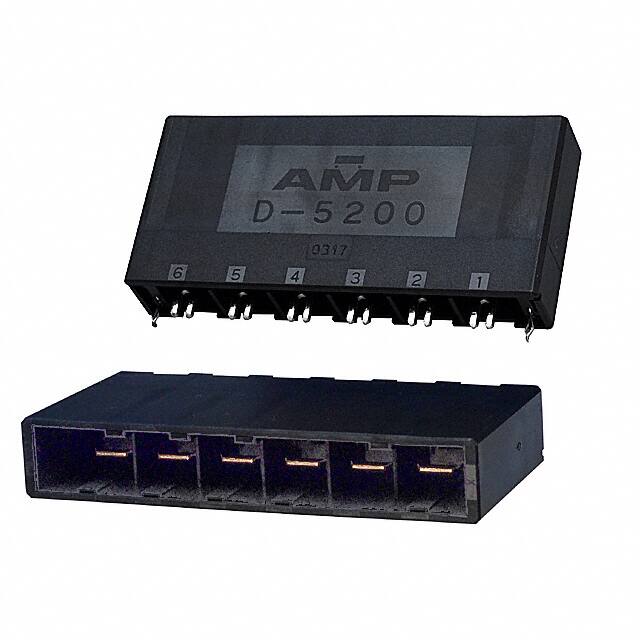

The TE Connectivity 1-179960-2 is a rectangular connector header designed for board-to-cable/wire applications. It features 6 positions in a single row with a 10.16mm pitch, providing ample spacing for high-current connections. The header is shrouded with a 4-wall design and includes a detent lock for secure mating. Contacts are made of copper alloy with tin plating (15µin thickness) and are rated for 30A at 630V. The insulation is black thermoplastic, polyester, glass filled with a UL94 V-0 flammability rating. Operating temperature range is -55°C to 105°C. The component is through hole mounted with solder termination and includes a board lock feature for additional retention. This header is suitable for power distribution and industrial applications requiring reliable high-current interconnects.
6 positions in a single row.
10.16mm (0.400 inches).
30A.
630V.
Through hole with solder termination.
-55°C to 105°C.
Tin with 15µin thickness.
