| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

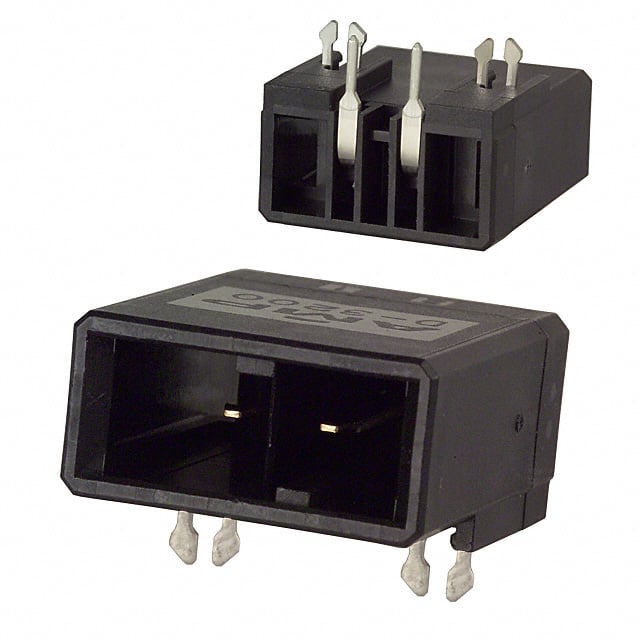

The TE Connectivity 1-179276-2 is a 2-position, 1-row header with a 5.08mm pitch, designed for board-to-board or cable-to-board applications. It uses a right-angle through-hole mounting with solder termination. The contacts are made of copper alloy with a tin finish (0.38µm) and a rectangular tab shape. The connector is fully shrouded with a 4-wall design and includes a detent lock for secure mating and a board lock feature for PCB retention. The insulation is black glass-filled thermoplastic polyester with a flammability rating of UL94 V-0. The insulation height is 9.35mm (0.368") and the contact length is 3.81mm (0.150"). It is rated for up to 600V and operates over -55°C to 105°C. The part is RoHS and REACH compliant (unverified) and has an MSL of 1 (unlimited).
2 positions.
5.08mm (0.200").
600V.
Through hole, right angle.
-55°C to 105°C.
Tin with 0.38µm thickness.
UL94 V-0.
