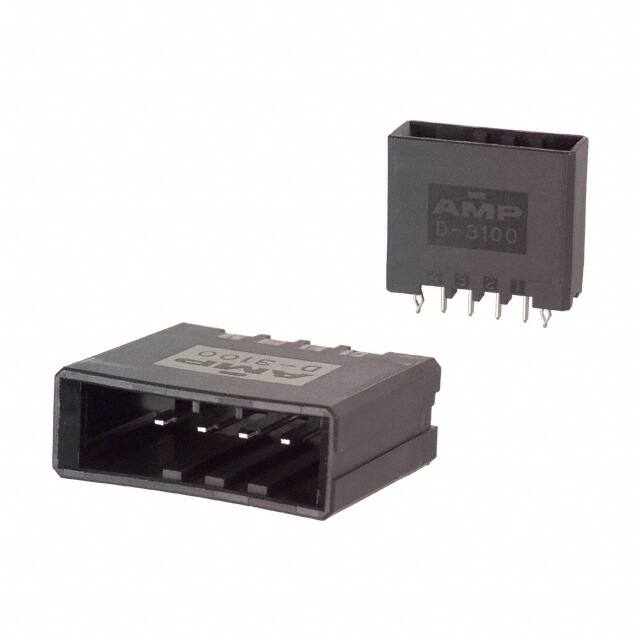

1-178314-5 TE Connectivity 1-178314-5 is a 4-position, single-row shrouded header with 3.81mm pitch, through-hole mounting, and tin-plated copper alloy contacts.
Mfr Part #:

1-178314-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-178314-5 is a 4-position, single-row shrouded header with 3.81mm pitch, through-hole mounting, and tin-plated copper alloy contacts.
✓ Total Stock: 2,090 pcs
$ Price Range: $1.50 - $2.72

1-178314-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
2,090 pcs
On Request
2090 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-178314-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1-178314-5 Description

Short technical summary and product information.

The TE Connectivity 1-178314-5 is a 4-position, single-row shrouded header designed for board-to-board or cable-to-board applications. It features a 3.81mm pitch and through-hole solder termination, providing reliable mechanical and electrical connections.



The header is fully shrouded with a 4-wall design and includes a detent lock fastening system for secure mating. The insulation is made of glass-filled thermoplastic polyester, rated UL94 V-0 for flammability resistance. Contacts are copper alloy with tin finish (78.7µin thickness), and the operating temperature range is -55°C to 105°C. A board lock feature aids in retention during soldering.

1-178314-5 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 1-178314-5 Header, Male Pins, 4 Position, 3.81mm Pitch, Through Hole, Shrouded
Subcategory: Shrouded Header

1-178314-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-178314-5 Estimated Pricing

Qty Low High
1+ $2.72 $2.72
10+ $2.34 $2.34
19+ $2.30 $2.30
114+ $2.13 $2.13
266+ $1.90 $1.90
513+ $1.85 $1.85
1,007+ $1.64 $1.64
2,508+ $1.54 $1.54
5,016+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

1-178314-5 Features

  • 4-position single-row shrouded header.
  • 3.81mm pitch with through-hole mounting.
  • Tin-plated copper alloy contacts.
  • UL94 V-0 glass-filled thermoplastic insulator.
  • Detent lock fastening for secure mating.

1-178314-5 Applications

  • Board-to-board interconnection in industrial equipment.
  • Cable-to-board connections in control systems.
  • Power and signal distribution in compact assemblies.

1-178314-5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the 1-178314-5 header?

The pitch is 3.81mm.

How many positions does the 1-178314-5 have?

It has 4 positions in a single row, all loaded.

What is the voltage rating of this header?

The voltage rating is 250V.

What mounting type does the 1-178314-5 use?

It uses through-hole mounting with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to 105°C.

Is the 1-178314-5 header shrouded?

Yes, it is fully shrouded with a 4-wall design and includes a detent lock.
