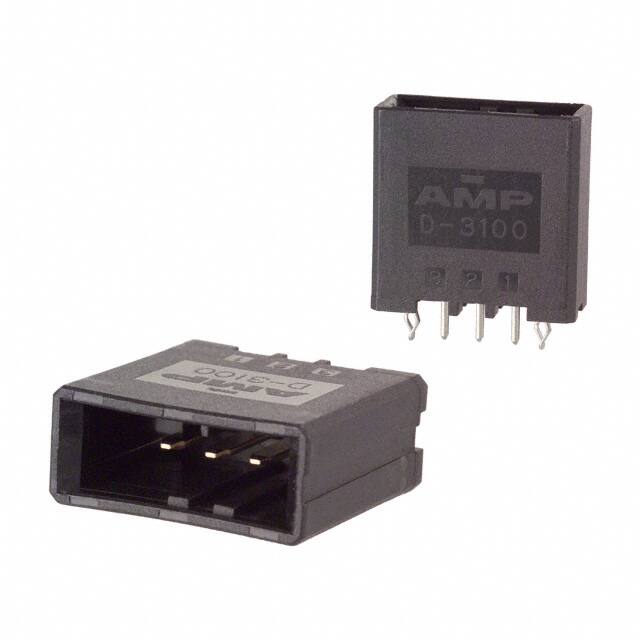

1-178313-2 This TE Connectivity header has 3 positions with 3.81mm pitch, through-hole mounting, and tin-plated rectangular contacts. It features a shrouded 4-wall design with detent lock for secure connections.
Mfr Part #:

1-178313-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This TE Connectivity header has 3 positions with 3.81mm pitch, through-hole mounting, and tin-plated rectangular contacts. It features a shrouded 4-wall design with detent lock for secure connections.
✓ Total Stock: 2,553 pcs

1-178313-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,553 pcs
On Request
2553 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-178313-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1-178313-2 Description

Short technical summary and product information.

The TE Connectivity 1-178313-2 is a 3-position, single-row, shrouded header designed for board-to-board or cable connections. It features a 3.81mm pitch and through-hole mounting with solder termination, making it suitable for reliable vertical connections. The header has a 4-wall shrouded design with a detent lock for secure mating, and includes a board lock feature for additional retention during soldering. The rectangular tin-plated contacts are made of copper alloy, providing good conductivity and corrosion resistance. The black thermoplastic housing is glass-filled and rated UL94 V-0 for flammability, ensuring robust performance in various environments. The insulation height is 21.59mm, and the contact length is 3.81mm. It operates over a temperature range of -55°C to 105°C and is rated for 250V. This header is ideal for applications requiring a compact, reliable interconnect solution.

1-178313-2 Quick Information

Product Type: Header
Series: DYNAMIC Series
Canonical Name: TE Connectivity 1-178313-2 Header, Male Pins, 3 Position, 3.81mm Pitch, Through Hole
Subcategory: Male Pins

1-178313-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1-178313-2 Features

  • 3-position single-row header with 3.81mm pitch.
  • Through-hole mounting with solder termination.
  • Tin-plated rectangular contacts for corrosion resistance.
  • Shrouded 4-wall design with detent lock.
  • Board lock feature for PCB retention.

1-178313-2 Applications

  • Board-to-board connections in industrial equipment.
  • Cable-to-board interfaces in control systems.
  • Vertical mounting in compact electronic devices.
  • Automotive interior applications within temperature range.

1-178313-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

3 positions.

What is the pitch?

3.81mm (0.150 inches).

What is the voltage rating?

250V.

What is the mounting type?

Through hole.

What is the operating temperature range?

-55°C to 105°C.

What is the insulation material?

Thermoplastic, polyester, glass filled.

Does it have a board lock?

Yes, it features a board lock.
