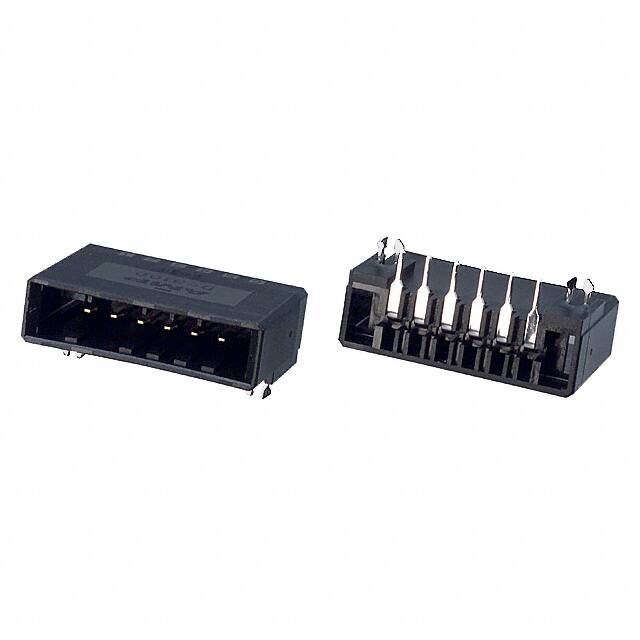

1-178296-2 TE Connectivity 1-178296-2 is a 6-position, single-row header with 3.81mm pitch. It features through hole right angle mounting, shrouded 4-wall design, and detent lock fastening.
Mfr Part #:

1-178296-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-178296-2 is a 6-position, single-row header with 3.81mm pitch. It features through hole right angle mounting, shrouded 4-wall design, and detent lock fastening.
✓ Total Stock: 1 pcs

1-178296-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-178296-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1-178296-2 Description

Short technical summary and product information.

The TE Connectivity 1-178296-2 is a rectangular connector header designed for board-to-board or cable applications. It has 6 positions in a single row with a 3.81mm pitch. The connector features a shrouded 4-wall design with a detent lock for secure mating. It is mounted through hole with a right angle orientation, making it suitable for space-constrained designs. The contacts are made of copper alloy with tin plating (15µin thickness). The insulation is black thermoplastic, polyester, glass filled with UL94 V-0 flammability rating. Operating temperature range is -55°C to 105°C. Voltage rating is 250V. The header includes a board lock feature for additional retention. This connector is RoHS3 compliant and has MSL 1 unlimited. It is commonly used in industrial, automotive, and consumer electronics where reliable connections are required.

1-178296-2 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 1-178296-2 Header, 6 Position, 3.81mm Pitch, Through Hole Right Angle, Shrouded
Subcategory: Male Pins

1-178296-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-178296-2 Features

  • 6 positions in single row with 3.81mm pitch.
  • Through hole right angle mounting for space-saving design.
  • Shrouded 4-wall housing with detent lock.
  • Board lock feature for secure PCB retention.
  • Tin-plated copper alloy contacts with 15µin finish.

1-178296-2 Applications

  • Board-to-board connections in industrial equipment.
  • Cable-to-board interfaces in consumer electronics.
  • Automotive control module interconnects.
  • General purpose signal and power distribution.

1-178296-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TE Connectivity 1-178296-2 header have?

6 positions in a single row.

What is the pitch of this header?

3.81mm (0.150 inches).

What is the voltage rating?

250V.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to 105°C.

What is the contact finish?

Tin with 15µin thickness.

Is this header shrouded?

Yes, it has a shrouded 4-wall design with detent lock.
