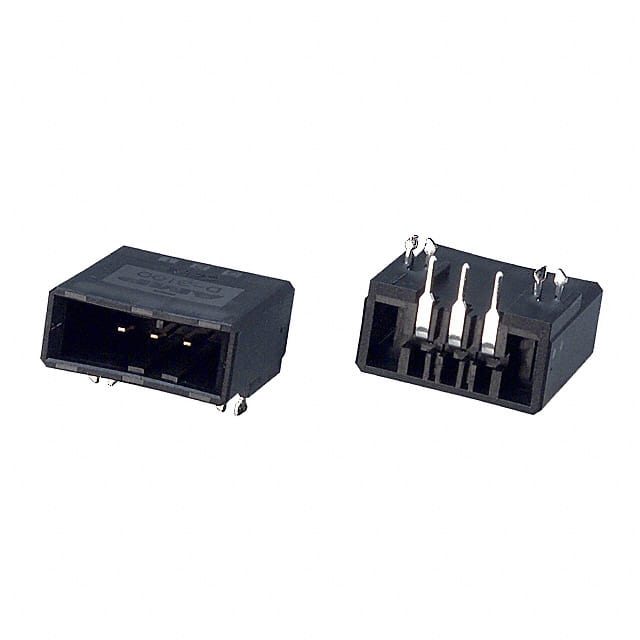

1-178293-2 TE Connectivity 1-178293-2 is a 3-position, single-row header with 3.81mm pitch, through hole right angle mounting, and shrouded 4-wall design with detent lock.
Mfr Part #:

1-178293-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-178293-2 is a 3-position, single-row header with 3.81mm pitch, through hole right angle mounting, and shrouded 4-wall design with detent lock.
✓ Total Stock: 1 pcs
$ Price Range: $1.71 - $3.00

1-178293-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-178293-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1-178293-2 Description

Short technical summary and product information.

This is a 3-position header from TE Connectivity, part of the 1-178293 series. It features a 3.81mm pitch and a single row of rectangular tab contacts. The connector is shrouded with a 4-wall design and includes a detent lock for secure mating.



The header is designed for through hole, right angle mounting, making it suitable for board-to-board or cable applications. The contacts are made of copper alloy with tin finish (15.0µin). The insulation is black thermoplastic, glass-filled polyester, rated UL94 V-0. Operating temperature range is -55°C to 105°C.



The connector includes a board lock feature for additional retention. Voltage rating is 250V. The fastening type is detent lock. All positions are loaded. This header is RoHS3 compliant and REACH unaffected (unverified). It is commonly used in industrial and commercial electronic assemblies.

1-178293-2 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 1-178293-2 Header, Male Pins, 3 Position, 3.81mm Pitch, Through Hole, Right Angle
Subcategory: Headers

1-178293-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-178293-2 Estimated Pricing

Qty Low High
1+ $3.00 $3.00
10+ $2.73 $2.73
23+ $2.59 $2.59
115+ $2.41 $2.41
253+ $2.10 $2.10
506+ $2.04 $2.04
1,012+ $1.81 $1.81
1,840+ $1.71 $1.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

1-178293-2 Features

  • 3 positions in single row with 3.81mm pitch.
  • Through hole right angle mounting for compact designs.
  • Shrouded 4-wall housing with detent lock.
  • Tin-plated copper alloy contacts for reliable conductivity.
  • Board lock feature for secure PCB retention.

1-178293-2 Applications

  • Board-to-board connections in industrial electronics.
  • Cable-to-board interfaces requiring secure locking.
  • Power and signal distribution in control systems.

1-178293-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

3 positions.

What is the pitch?

3.81mm.

What is the voltage rating?

250V.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to 105°C.

What is the fastening type?

Detent lock.

What is the contact finish?

Tin, 15.0µin (0.38µm).
