1-1761608-1 The 1-1761608-1 is a 34-position, 2-row shrouded header connector from TE Connectivity. It features a 2.54mm pitch, through hole mounting, and tin-plated phosphor bronze contacts.
Mfr Part #:

1-1761608-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The 1-1761608-1 is a 34-position, 2-row shrouded header connector from TE Connectivity. It features a 2.54mm pitch, through hole mounting, and tin-plated phosphor bronze contacts.
✓ Total Stock: 39 pcs
$ Price Range: $7.56 - $11.74

1-1761608-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
39 pcs
On Request
39 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1761608-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1-1761608-1 Description

Short technical summary and product information.

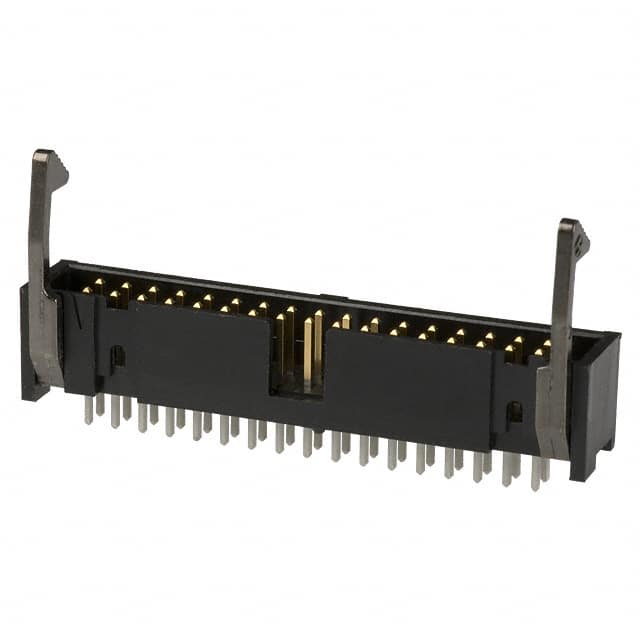

The 1-1761608-1 is a 34-position, 2-row shrouded header connector manufactured by TE Connectivity. It features a 2.54mm (0.100") pitch and is designed for through hole mounting with solder termination. The connector is shrouded with 4 walls and includes latch lock/eject hooks for secure mating, along with a keying slot for proper alignment.



The male pin contacts are made of phosphor bronze with a tin plating of 30.0µin (0.76µm) thickness. The insulation is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The operating temperature range is -65°C to 105°C.



Electrically, each contact is rated for 1A current and 250VAC voltage. The connector is designed for board-to-cable/wire applications where a reliable and polarized connection is required.

1-1761608-1 Quick Information

Product Type: Header, Male Pins
Canonical Name: 34 Position 2.54mm Pitch 2 Row Shrouded Header, Male Pins, Through Hole
Subcategory: Headers, Male Pins

1-1761608-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-1761608-1 Estimated Pricing

Qty Low High
1+ $11.74 $11.74
10+ $10.41 $10.41
20+ $10.01 $10.01
50+ $9.61 $9.61
100+ $9.07 $9.07
200+ $8.27 $8.27
500+ $7.74 $7.74
1,000+ $7.56 $7.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

1-1761608-1 Features

  • 34-position, 2-row shrouded header connector.
  • 2.54mm pitch with through hole mounting.
  • Tin-plated phosphor bronze contacts.
  • Latch lock/eject hooks for secure connection.
  • UL94 V-0 rated PBT insulation.

1-1761608-1 Applications

  • Board-to-cable/wire interconnections.
  • Applications requiring keying and locking mechanisms.

1-1761608-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1-1761608-1 header have?

34 positions.

What is the pitch of this connector?

2.54mm (0.100").

What is the current rating per contact?

1A per contact.

What is the voltage rating?

250VAC.

What is the mounting type?

Through hole.

How many rows does this header have?

2 rows.

Is the header shrouded?

Yes, it is shrouded with 4 walls.
