| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Voltage | |
| Voltage Rating |

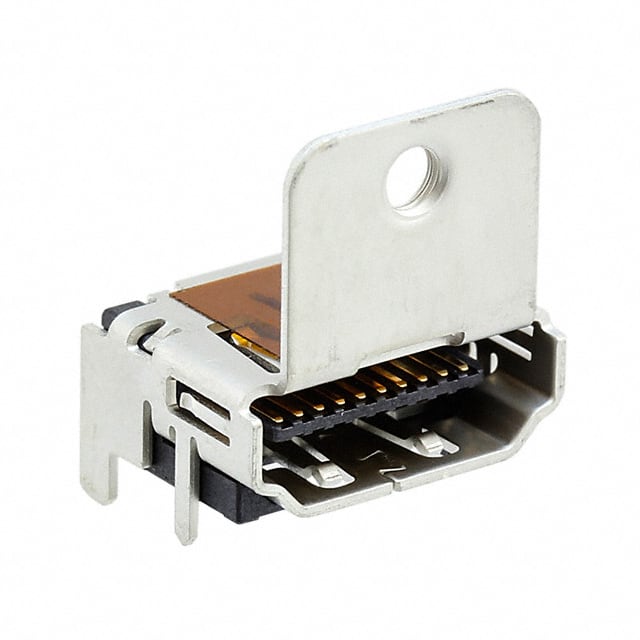

The TE Connectivity 1-1747981-4 is an HDMI receptacle connector designed for reliable audio/video signal transmission. It features 19 contacts and a single port configuration, making it suitable for standard HDMI interface applications.
This connector is rated for 0.5A current and 40VAC, with an operating temperature range of -25°C to 70°C. It supports multiple mounting options including panel mount, surface mount right angle, and through hole, with solder termination. The mounting feature includes a flange for horizontal orientation.
The connector is rated for 10,000 mating cycles, ensuring long-term durability in frequent-use environments. Its compact design and right-angle orientation make it ideal for space-constrained applications where a low-profile HDMI connection is required.
0.5A
40VAC
Panel mount, surface mount right angle, and through hole.
19 contacts.
-25°C to 70°C.
10,000 mating cycles.
