| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,568 pcs
|
2568 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
260 pcs
|
260 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Voltage | |
| Voltage - Rated |

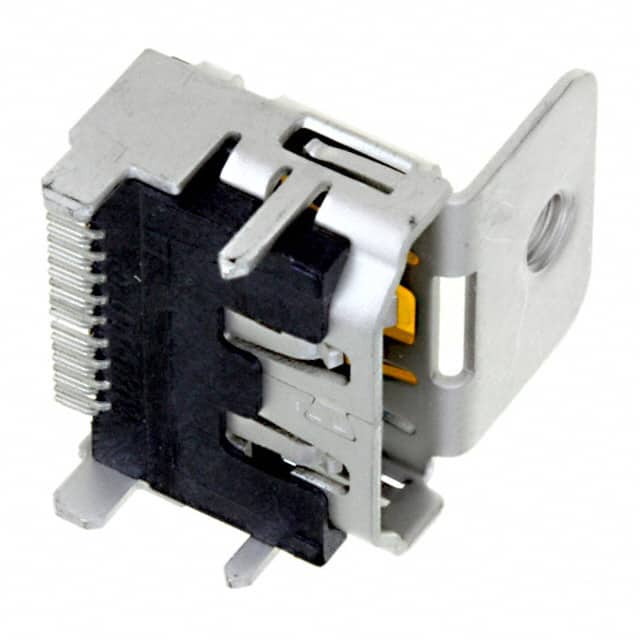

The TE Connectivity 1-1747981-1 is an HDMI receptacle connector designed for panel mount applications with a right angle orientation. It features 19 contacts and a single port, making it suitable for standard HDMI interface requirements.
This connector is rated for 0.5 A current and 40 VAC voltage with an operating temperature range of -25°C to 70°C, ensuring reliable performance in typical consumer and industrial environments. The solder termination type supports secure and straightforward assembly.
Mechanically, the connector is built with a flange, horizontal mounting feature and supports 10,000 mating cycles, providing durability for repeated use. The component is classified under USB, DVI, HDMI connector assemblies and is designed for applications where a robust panel-mounted HDMI connection is required.
The current rating is 0.5 A per contact.
The voltage rating is 40 VAC.
Panel mount, right angle, with flange and horizontal mounting feature.
It has 19 contacts.
-25°C to 70°C.
10,000 mating cycles.
