| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Flange Feature | |
| Housing Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Height | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

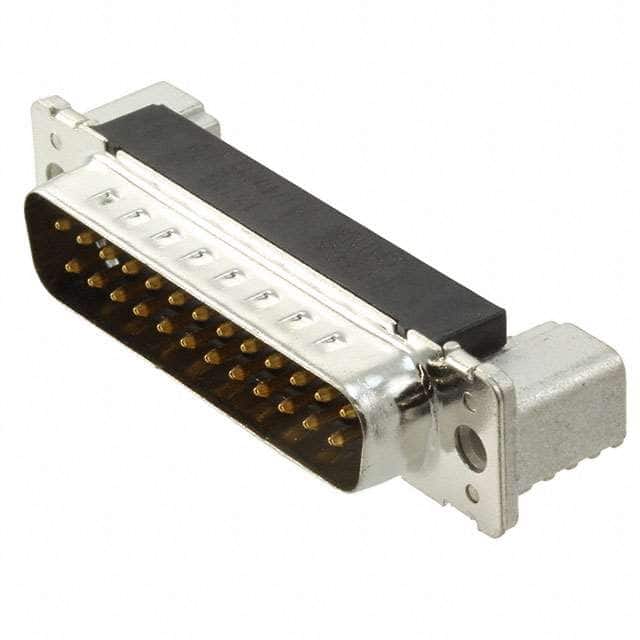

The TE Connectivity 1-1740199-2 is a 25-position D-Sub plug connector featuring male pins in a 2-row arrangement. It is designed for surface mount, right angle assembly, with solder termination. The connector has a steel, tin-plated shell and a black thermoplastic housing rated UL94 V-0. Contacts are gold-plated with a thickness of 0.80 µm. The flange feature includes housing/shell 4-40 threaded inserts. Additional features include board guide and grounding indents. The mounting height is 3.6 mm, suitable for space-constrained PCB designs.
| Qty | Low | High |
|---|---|---|
| 4,000+ | $3.81 | $3.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a D-Sub plug with male pins.
It has 25 positions arranged in 2 rows.
It is surface mount with a right angle orientation and solder termination.
The contacts are gold-plated with a thickness of 0.80 µm.
The shell is steel with tin plating.
The housing material is rated UL94 V-0.
The mounting height is 3.6 mm.
