| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
$5.00
|
5 pcs |
$5.00
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

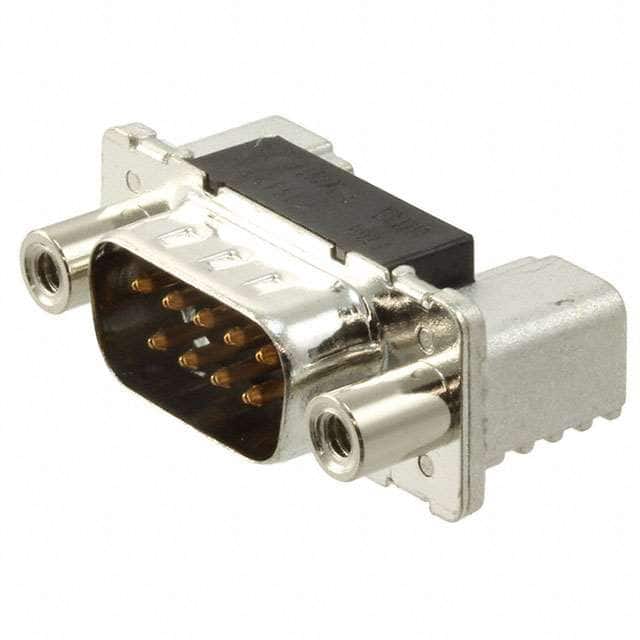

This TE Connectivity D-Sub connector (1-1740195-2) is a 9-position plug with male pins arranged in 2 rows, using shell size 1 (DE, E). The connector features a right angle surface mount design for solder termination, making it suitable for compact PCB layouts where space is limited. Contacts are signal type with gold finish (31.5 microinches), ensuring reliable low-level signal connections.
The shell is constructed from steel with tin plating for durability and EMI shielding. A board-side flange with 4-40 threaded inserts provides secure mounting to the PCB. The insulator material meets UL94 V-0 flammability rating, appropriate for most commercial and industrial applications. An integrated board guide aids alignment during assembly.
Plug, Male Pins; D-Sub style.
9 positions arranged in 2 rows.
Surface Mount, Right Angle with solder termination.
Gold, 0.80 µm (31.5 microinches) thickness.
UL94 V-0.
