| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,902 pcs
|
8902 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Series | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Sealed | |
| Termination Style | |
| Wire Size Range (Max) |

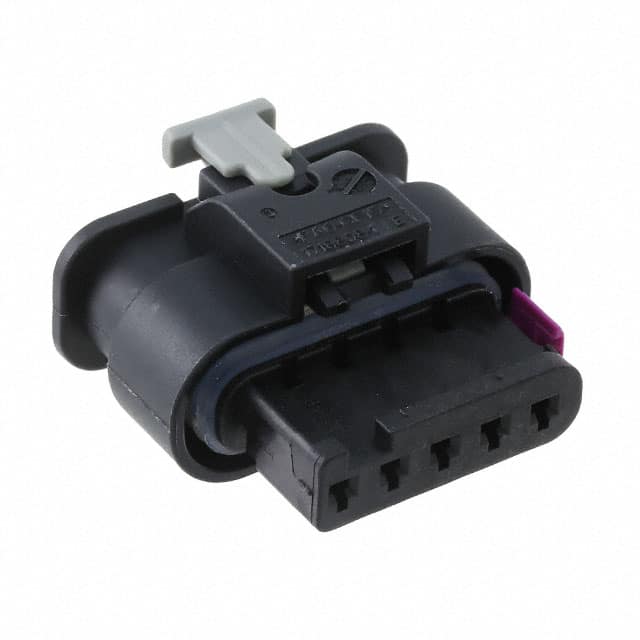

The TE Connectivity 1-1718806-1 is a 5 position rectangular connector housing designed for use with MCON 1.2 female socket contacts. This receptacle housing features a single row configuration with a 4.00mm pitch, making it suitable for compact wire-to-wire connections.
The housing is free hanging (in-line) and uses a latch lock fastening system for secure mating. It is sealed for environmental protection and operates over a temperature range of -40°C to 130°C. The housing is supplied with the CPA (Connector Position Assurance) and retainer in prelocked positions, simplifying assembly.
Crimp termination is used for contact attachment, and the housing accommodates wire sizes up to 1.0 mm². The black housing is made from PA46-GF15 material, with a gray assembly line segment identification mark.
The 1-1718806-1 has 5 positions in a single row.
The pitch is 4.00mm (0.157 inches).
It uses free hanging (in-line) mounting.
The operating temperature range is -40°C to 130°C.
The housing is designed for MCON 1.2 contacts (TE Connectivity drawing 1452674).
Yes, the housing is sealed.
