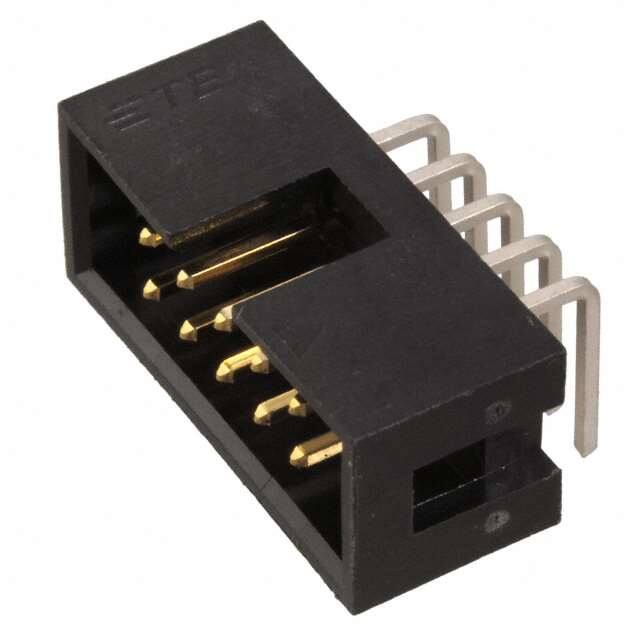

The TE Connectivity 1-1634689-0 is a 10-position rectangular header connector designed for board-to-cable/wire applications. It has a 2.54mm pitch and dual-row configuration, making it suitable for standard spacing requirements. The connector uses a shrouded-4-wall design for mating alignment and protection, with a push-pull fastening mechanism.
The header features through-hole right-angle mounting with solder termination. Contacts are made of brass with a tin plating (0.25µm thickness) and have a square pin shape, ensuring reliable electrical connections. The housing is molded from black polyamide (PA6T/Nylon 6T) insulation material with a flammability rating of UL94 V-0.
Rated for 3A per contact, the connector operates across -40°C to 105°C, making it useful for many industrial and commercial environments. It includes a keying slot for polarization, preventing mis-mating in multi-connector assemblies.
The connector has a 2.54mm pitch.
The header has 10 positions arranged in 2 rows, with all positions loaded.
The current rating is 3A per contact.
It is a through-hole, right-angle mounting style with solder termination.
It operates from -40°C to 105°C.
