| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

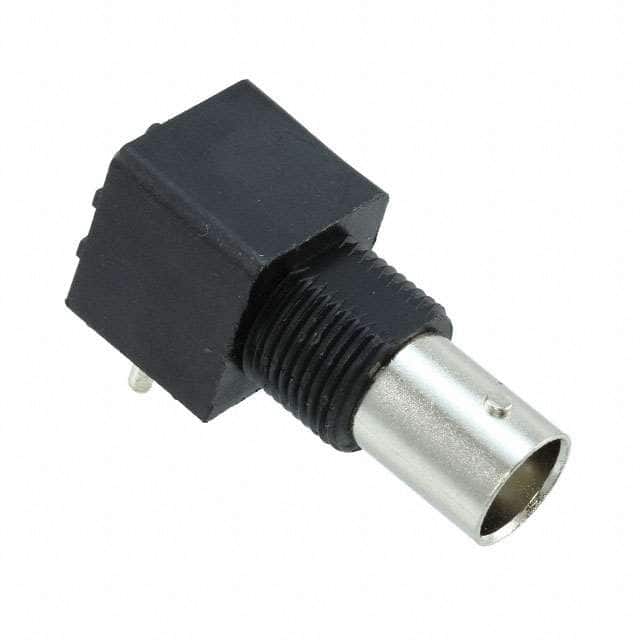

The TE Connectivity 1-1634622-0 is a BNC coaxial connector designed for 75 Ohm systems. It features a jack, female socket configuration with a bayonet lock fastening type for secure connections. The connector supports frequencies up to 2 GHz, making it suitable for video, broadcast, and telecommunications applications.
This connector offers a right angle orientation with panel mount and through hole mounting. The bulkhead front side nut mounting feature provides robust mechanical retention. Contact and shield terminations are both solder type, ensuring reliable electrical connections.
The housing is available in black and silver colors. The center contact is made of brass. Additional features include a board guide and isolated design to simplify PCB alignment and reduce signal interference.
75 Ohm.
2 GHz.
BNC jack, female socket.
Panel mount, through hole, right angle with bulkhead front side nut.
Solder termination for both contact and shield.
Bayonet lock.
Black and silver.
