| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

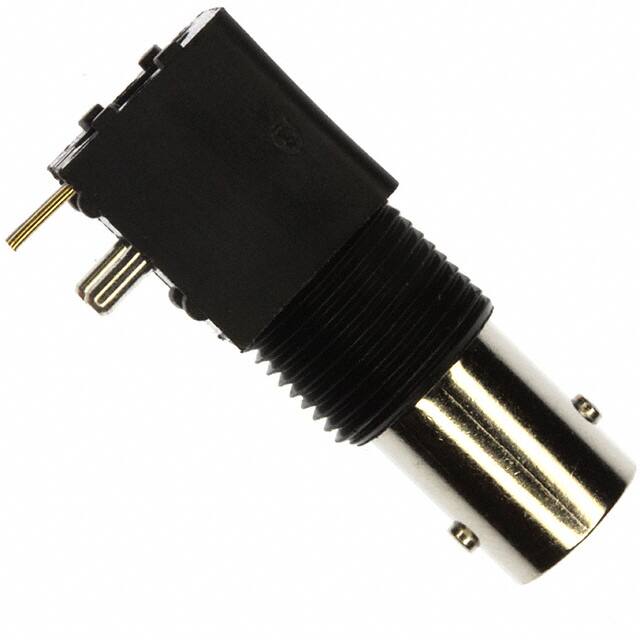

This TE Connectivity BNC jack connector (1-1634613-0) is a female socket designed for 50 Ohm impedance and operates up to 4 GHz. It features a bayonet lock fastening type for secure connections. The connector is panel mounted with a bulkhead front side nut and uses through-hole, right-angle solder terminations for both contact and shield. The center contact is made of brass, and the housing is available in black and silver. It includes board guide and isolated features.
50 Ohm.
4 GHz.
BNC Jack, Female Socket.
Panel mount, through hole, right angle with bulkhead front side nut.
Solder for both contact and shield.
Bayonet lock.
