| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

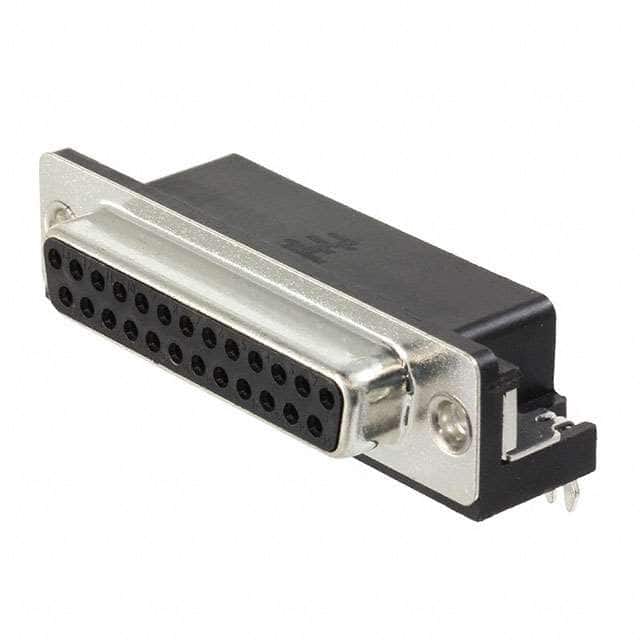

The TE Connectivity 1-1634586-2 is a D-Sub receptacle connector designed for reliable signal interconnections. It features 25 positions arranged in 2 rows, with female socket contacts that are gold-plated (15.0 µin / 0.38 µm) for corrosion resistance and reliable low-level signal transmission. The connector is rated for 5A per contact and is terminated via solder to a through-hole, right-angle mounting configuration.
The shell is made of steel with a nickel-plated finish, providing durability and EMI shielding. The connector layout is shell size 3 (DB, B), and it includes a housing/shell flange feature with 4-40 threaded inserts for secure mating. A board lock feature aids in retention during soldering. The insulator material has a UL94 V-0 flammability rating, suitable for applications requiring flame retardance. The backset spacing is 0.411" (10.43mm), accommodating standard PCB layouts.
Receptacle, Female Sockets, D-Sub style.
25 positions arranged in 2 rows.
5 A per contact.
Through Hole, Right Angle with solder termination.
Gold, 15.0 µin (0.38 µm) thickness.
Steel, Nickel Plated.
UL94 V-0.
