| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

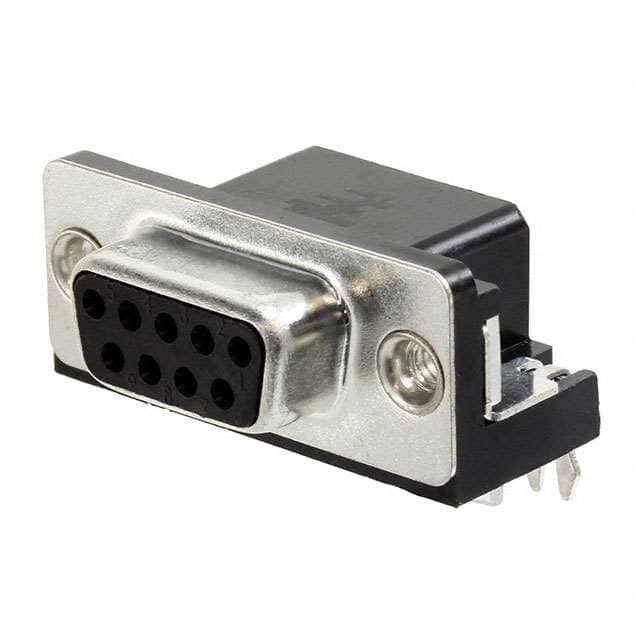

The 1-1634584-2 from TE Connectivity is a 9-position D-Sub receptacle connector with female sockets arranged in two rows. It features a right-angle through-hole mounting style with solder termination, making it suitable for PCB applications where space is limited. The connector is rated for 5A current per contact and has gold-plated contacts with a thickness of 15 microinches (0.38µm) for reliable signal integrity. The steel shell is nickel-plated, providing durability and EMI shielding. The housing includes a board lock feature for secure attachment to the PCB. The backset spacing is 0.411 inches (10.43mm), and the insulator material has a flammability rating of UL94 V-0. This connector is part of the D-Subminiature family and is commonly used in computer, industrial, and communication equipment.
| Qty | Low | High |
|---|---|---|
| 5,850+ | $0.80 | $0.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions in 2 rows.
5A per contact.
Through hole, right angle.
Gold, 15 microinches (0.38µm).
Steel, nickel plated.
UL94 V-0.
Yes, it includes a board lock feature.
