| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

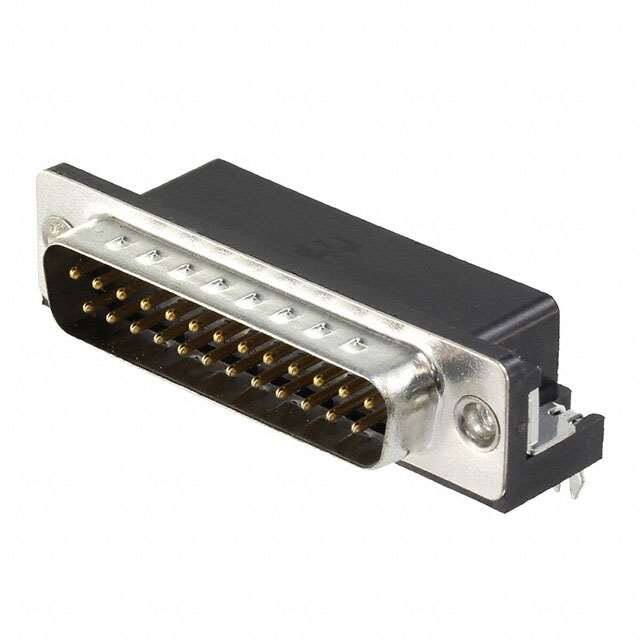

The TE Connectivity 1-1634582-2 is a D-Sub plug connector with male pins, designed for 25 positions arranged in 2 rows. It features a right angle through hole mounting style with solder termination, making it suitable for PCB applications where space constraints require a low-profile connection.
Electrical specifications include a current rating of 5A per contact. The contacts are signal type with a gold finish of 15.0µin (0.38µm) thickness, ensuring reliable conductivity and corrosion resistance. The shell is made of steel with nickel plating, providing durability and EMI shielding.
Mechanical features include board locks and grounding indents for secure attachment and improved grounding. The backset spacing is 0.411" (10.43mm). The connector uses a shell size 3 (DB, B) layout with a flange feature of Housing/Shell (4-40). The insulator material has a UL94 V-0 flammability rating.
Plug, Male Pins.
25 positions.
Through Hole, Right Angle.
5A per contact.
Gold, 15.0µin (0.38µm) thickness.
Steel, Nickel Plated.
UL94 V-0.
