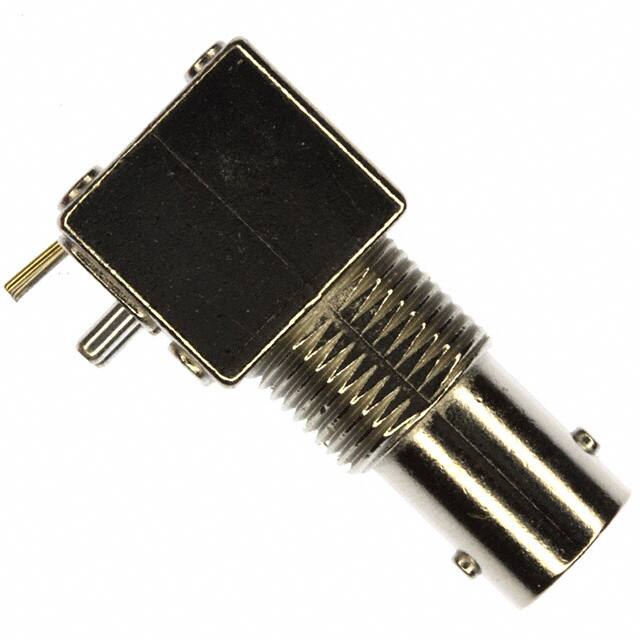

This is a BNC jack (female socket) connector from TE Connectivity, designed for 75 Ohm systems. It features a right-angle orientation for PCB mounting, with panel mount and through hole options. The mounting feature includes a bulkhead front side nut for secure panel attachment. Fastening is via bayonet lock, ensuring quick and reliable coupling. Both the center contact and shield are terminated by solder, providing robust electrical connections. The center contact is made of brass, and the housing is silver in color. A board guide feature aids in aligning the connector during PCB assembly. This connector is rated for operation up to 2 GHz, making it suitable for various RF applications such as video, broadcast, and test equipment.
75 Ohm.
2 GHz.
BNC.
Panel mount, through hole, right angle with bulkhead front side nut.
Solder for both contact and shield.
Brass.
Yes, it includes a board guide feature.
