| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| SVHC Present | |
| Shield Termination | |
| Termination Style |

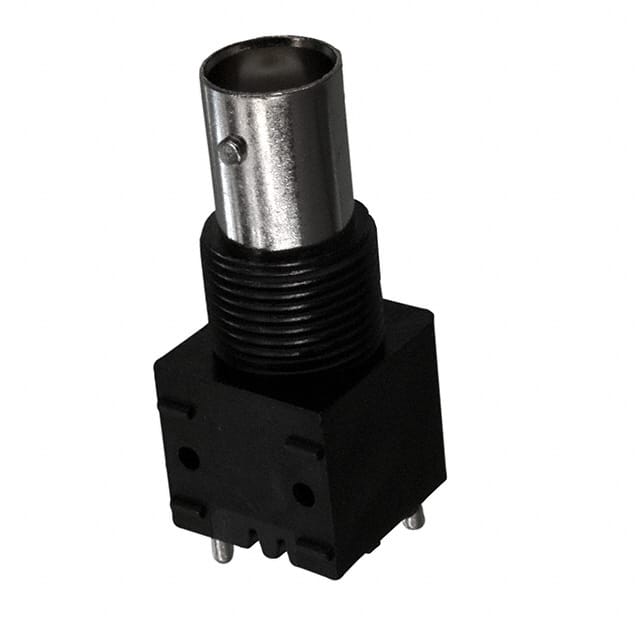

The TE Connectivity 1-1634505-0 is a BNC jack, female socket coaxial connector designed for 50 Ohm impedance systems. It supports frequencies up to 4 GHz, making it suitable for a range of RF applications. The connector uses a bayonet lock fastening type for secure and quick connections.
This connector features solder termination for both the center contact and shield, ensuring reliable electrical connections. It is designed for panel mount with a through-hole termination style, using a bulkhead front side nut mounting feature. The center contact is made of brass, and the housing is available in black and silver colors.
The connector includes board guide and isolated features. It is a single-port device, suitable for use in various RF and telecommunications equipment where a robust and reliable BNC interface is required.
The impedance is 50 Ohm.
The maximum frequency is 4 GHz.
It uses solder termination for both the contact and shield.
It is a panel mount with a bulkhead front side nut feature.
It uses a bayonet lock fastening type.
It is a BNC style jack with a female socket.
