| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

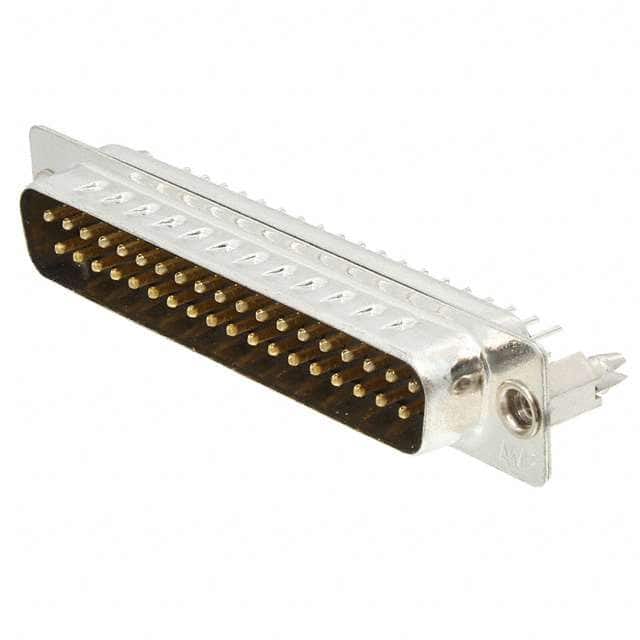

The TE Connectivity 1-1634221-2 is a D-Sub plug connector with 37 male pin positions arranged in 2 rows. It features a steel shell with nickel plating and a shell size of 4 (DC, C). The connector uses through hole mounting with solder termination for secure attachment to a printed circuit board.
Signal contacts are gold plated with a thickness of 0.38 µm, providing reliable conductivity and corrosion resistance. The connector is rated for 3 amps per contact. It includes board lock and grounding indent features for enhanced mechanical retention and EMI performance.
The insulator material has a UL94 V-0 flammability rating. The flange feature uses a housing/shell (4-40) thread for mating hardware.
It is a D-Sub plug connector with male pins.
It has 37 positions arranged in 2 rows.
It is through hole mounted with solder termination.
The current rating is 3 amps per contact.
The contacts have a gold finish with a thickness of 0.38 µm.
The shell is steel with nickel plating, shell size 4 (DC, C).
The material flammability rating is UL94 V-0.
