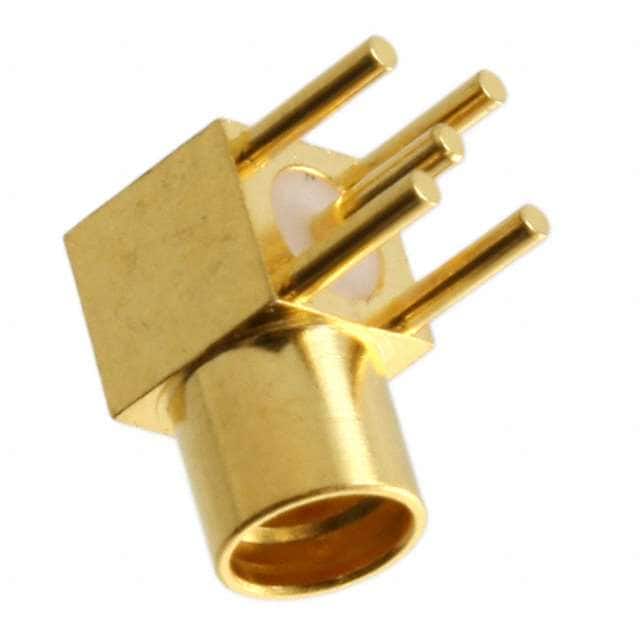

1-1634010-0 TE Connectivity MMCX receptacle, female socket, 50 Ohm impedance, right angle through hole mounting, solder termination.
Mfr Part #:

1-1634010-0

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity MMCX receptacle, female socket, 50 Ohm impedance, right angle through hole mounting, solder termination.
✓ Total Stock: 470 pcs

1-1634010-0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
470 pcs
On Request
470 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1634010-0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Termination Style
View Similar Products (0)

1-1634010-0 Description

Short technical summary and product information.

This is a TE Connectivity MMCX coaxial connector receptacle with a female socket interface. It features 50 Ohm impedance and supports frequencies up to 6 GHz.



The connector uses a snap-on fastening type for secure mating. The center contact is made of beryllium copper and the housing has a gold color.



It is designed for through hole, right angle mounting with solder contact and shield termination. This configuration is suitable for PCB applications requiring a right angle RF interconnect.



The connector has a single port and is part of the MMCX connector series from TE Connectivity.

1-1634010-0 Quick Information

Product Type: RF Coaxial Connector
Canonical Name: MMCX Receptacle, Female Socket, 50 Ohm, Right Angle, Through Hole
Subcategory: RF Connector Assembly

1-1634010-0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-1634010-0 Features

  • MMCX receptacle with female socket interface.
  • 50 Ohm impedance, 6 GHz maximum frequency.
  • Right angle through hole PCB mounting.
  • Snap-on fastening for secure mating.
  • Gold plated beryllium copper center contact.

1-1634010-0 Applications

  • RF signal interconnection on PCBs.
  • Telecommunications and wireless equipment.
  • Test and measurement instrumentation.
  • Antenna and module connections.

1-1634010-0 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of this connector?

50 Ohm.

What is the maximum operating frequency?

6 GHz.

What type of mounting does this connector use?

Through hole, right angle.

What is the fastening type?

Snap-On.

What is the termination method?

Solder for both contact and shield.

What material is the center contact made of?

Beryllium Copper.
