| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28,500 pcs
|
28500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,980 pcs
|
2980 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Industrial Grade | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

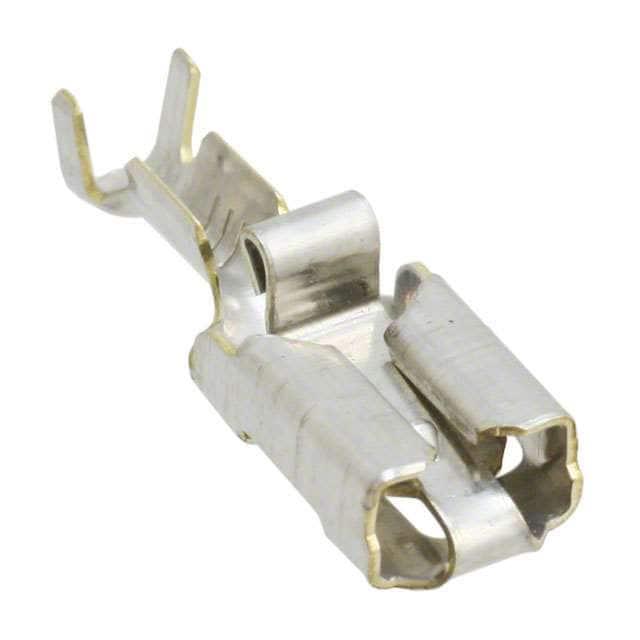

The TE Connectivity 1-160759-1 is a non-insulated quick connect receptacle from the FASTON Positive Lock series. It is designed for 16-20 AWG wire and accepts a 0.250" (6.35mm) tab with a thickness of 0.032" (0.81mm). The terminal is female, standard type, and uses a crimp termination for a secure connection.
This receptacle is made from brass with a tin contact finish, providing good conductivity and corrosion resistance. It is a free hanging (in-line) mounting style, making it suitable for wire-to-wire or wire-to-tab connections where a reliable, quick-disconnect interface is needed.
The Positive Lock design features a locking dimple that engages with a hole in the mating tab, providing a secure connection that resists accidental disconnection. The part is RoHS3 compliant and has an MSL of 1 (unlimited).
16-20 AWG
0.250" (6.35mm)
No, it is non-insulated.
Crimp
Brass contact with tin finish.
Free Hanging (In-Line)
