| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
112 pcs
|
112 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

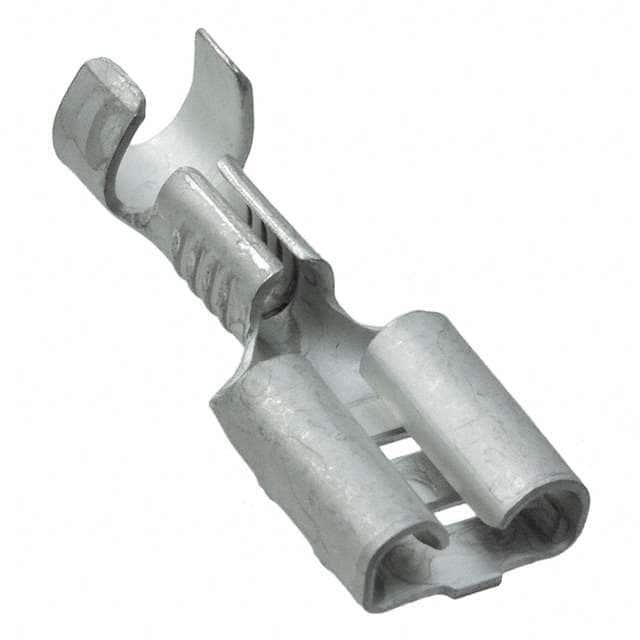

The TE Connectivity 1-160304-2 is a non-insulated female quick disconnect terminal designed for wire sizes 13.5-17 AWG. It features a standard terminal type with a tab width of 0.250" (6.35mm), a tab thickness of 0.032" (0.81mm), and a tab length of 0.303" (7.70mm). The overall length of the terminal is 20.19mm (0.795").
This terminal is made of brass with a tin contact finish, providing good conductivity and corrosion resistance. The termination method is crimp, and it is designed for free hanging (in-line) mounting. The insulation is non-insulated, so it is suitable for applications where insulation is not required or where additional insulation can be added.
The part is RoHS compliant (out of scope per datasheet) and has a moisture sensitivity level (MSL) of 1. It is a direct replacement for DigiKey part number A106546-ND. For detailed specifications, refer to the manufacturer documentation.
The terminal accepts wire sizes 13.5 to 17 AWG.
Tab width is 0.250" (6.35mm), thickness 0.032" (0.81mm), length 0.303" (7.70mm).
Crimp termination.
Brass contact with tin plating.
No, it is non-insulated.
Free hanging (in-line) mounting.
The datasheet states EU RoHS Directive 2011/65/EU is out of scope.
