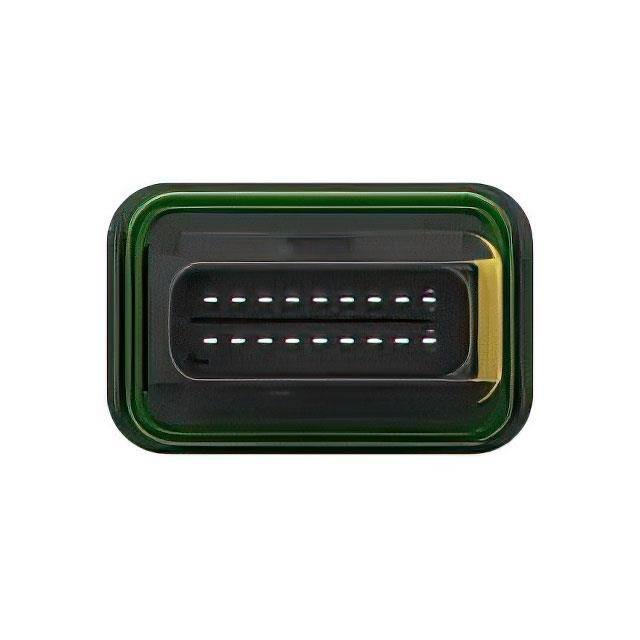

1-1564526-1 TE Connectivity 1-1564526-1 is an 18-position rectangular connector plug housing with 4.00mm pitch. It features a slide-on fastening type and panel mounting with a sealed flange.
Mfr Part #:

1-1564526-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-1564526-1 is an 18-position rectangular connector plug housing with 4.00mm pitch. It features a slide-on fastening type and panel mounting with a sealed flange.
✓ Total Stock: 6,642 pcs

1-1564526-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
6,342 pcs
On Request
6342 pcs On Request 1 On Request On Request On Request On Request On Request
AA2DE ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1564526-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Fastening Type
Features
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Row Spacing
Weight
View Similar Products (0)

1-1564526-1 Description

Short technical summary and product information.

The TE Connectivity 1-1564526-1 is a rectangular connector plug housing designed for reliable wire-to-wire and wire-to-panel interconnections. This housing accommodates 18 positions arranged in 2 rows with a 4.00mm pitch and a 6.00mm row spacing. The housing uses tab contacts with crimp termination, making it suitable for automated and manual assembly processes.



The housing features a slide-on fastening type and includes a mounting flange for secure panel mounting. The sealed design provides environmental protection, and the black thermoplastic housing has an operating temperature range of -40°C to 140°C. The component weighs 37.11 grams.



As part of the Heavy Duty Sealed Connector series, this housing is suited for demanding applications where vibration resistance and environmental sealing are important. The plug design mates with compatible headers to complete the connector system.

1-1564526-1 Quick Information

Product Type: Rectangular Connector Housing
Series: Heavy Duty Sealed Connector
Canonical Name: 18 Position 4.00mm Pitch Panel Mount Rectangular Connector Plug Housing
Subcategory: Rectangular Connector Housings

1-1564526-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-1564526-1 Features

  • 18 positions with 4.00mm pitch
  • Panel mount with mounting flange
  • Sealed housing design
  • Operating temperature range -40°C to 140°C
  • Crimp termination for tab contacts

1-1564526-1 Applications

  • Automotive electrical system connections
  • Industrial control panel wiring
  • Heavy equipment interconnection
  • Power distribution applications

1-1564526-1 FAQs

3 frequently asked questions generated from this part’s specifications.
What is the number of positions on the 1-1564526-1?

The housing has 18 positions.

What is the pitch of the TE Connectivity 1-1564526-1 connector housing?

The pitch is 4.00mm (0.157 inches).

What mount type does the 1-1564526-1 use?

The housing is panel mount with a mounting flange.
